Inspect basic position of the balancing shaft - AR03.20-P-3637AV

ENGINE 112

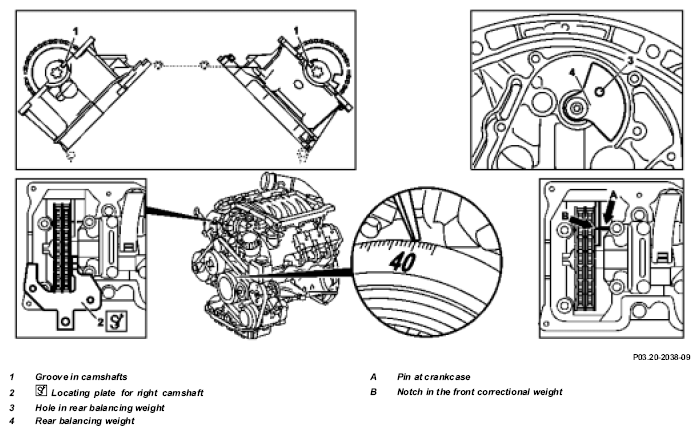

Fig 1: Identifying Basic Position Of Balancing Shaft

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1.1	Remove automatic transmission	Models 129, 170, 202, 208, 210	AR27.10-P-0500B
		Model 463 up to 31.10.2000	AR27.10-P-0500BD
		Model 463 as of 1.11.2000	AR27.10-P-0500GA
		Model 220 without 4MATIC	AR27.10-P-0500I
		Model 220 with 4MATIC	AR27.10-P-0500IW
		Model 203 without 4MATIC, 209	AR27.10-P-0500P
		Model 203 with 4MATIC	AR27.10-P-0500PW
		Model 211	AR27.10-P-0500T
		Model 163	AR27.10-P-0500GH
1.2	Remove manual transmission	Model 210, 202, 129	AR26.10-P-0020A
		Models 203, 209	AR26.10-P-0020P
		Model 211	AR26.10-P-0020T
		Model 170	AR26.10-P-0020D
1.3	Remove the Sequentronic automated manual transmission	Model 203, 208, 209	AR26.10-P-0020E
		Model 211.0	AR26.10-P-0020TA
2	Install the retaining lock (6) for the crankshaft (5) and starter ring gear		AR03.30-P-5000B
3.1	Dismount clutch	Vehicles with manual transmission Only unscrew or screw in bolts by 1 to 1.5 turns at a time Models 129, 163, 170, 202, 208, 210 Models 203, 209, 211	AR25.10-P-0050A AR25.10-P-0050P
		*BA25.10-P-1001-01A
4	Remove flywheel	Except model 211 Model 211	AR03.30-P-8001C  AR03.30-P-8001T
5	Remove cylinder head covers	Air filter mounted on vehicle Air filter mounted on engine	AR01.20-P-5014B AR01.20-P-5014BV
6.1	Detach combination valve (right)	On engines fitted with air pump Installation:  Replace combination valve gasket.	*BA09.20-P-1001-01D
7	Position engine to 40° after ignition TDC of cylinder 1	Engine must not be cranked back. Rotate engine at crankshaft in direction of rotation until 40° marking on belt pulley/ vibration damper is aligned with marking on timing case cover. Grooves (1) on the camshafts must point toward the inner V.
8	Check basic position of camshafts	Place locating plates (2) flush on the right and left cylinder heads, and fit into the grooves (1) of the camshafts.	Figure Figure
	If this is not possible: ↓
	Set the basic position of camshafts	AR05.20-P-6020AU
9	Inspect basic position of the balancing shaft	The hole (3) at the rear correctional weight (4) must align with the hole in the crankcase. Fix hole with a pin or suitable drift (Ø 8.40 to 8.55 mm). If the hole (3) at the rear of the correctional weight (4) is aligned with the hole in the crankcase, then, the pin at the crankcase (A) and the notch in the front correctional weight (B) must point toward each other. The pin (A) and the notch (B) can be seen through the left timing case recess at a depth of about 22 cm from the cylinder head cover separating surface. If the markings of the front and rear balance shaft do not match, the balance shaft must be replaced:↓ Remove balancing shaft	AR03.20-P-1000A
		Installation:  When installing balancing shaft, pay attention to assignment of balancing shaft to engine.
	General information on assigning balancing shaft to engine		AH03.20-P-1000-01AV
10	Install in the reverse order

INTAKE MANIFOLD

Number	Designation			Engines 112,113
BA09.20-P-1001-01D	Bolt, intake manifold to cylinder head	M8	Nm	20

CLUTCH

Number	Designation		Models 129, 140, 163, 170, 202, 203, 208, 209, 210,211, 230
BA25.10-P-1001-01A	Bolt of pressure plate to flywheel or two-mass flywheel	Nm	25

Fig 2: Identifying Locating Plate (112 589 00 32 00)

Fig 3: Identifying Locating Plate (112 589 01 32 00)
