General information on assigning balancing shaft to engine - AH03.20-P-1000-01AV

Engine 112

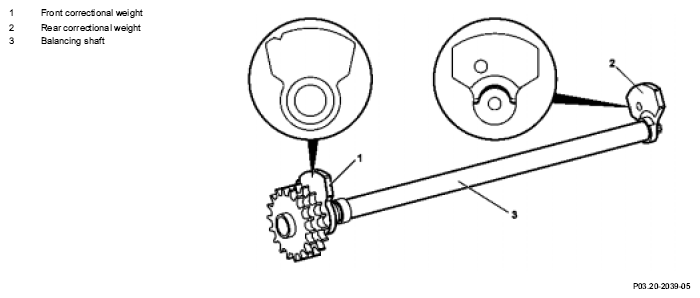

1. Front correctional weight
2. Rear correctional weight
3. Balancing shaft

   Balancing shafts where the correctional weights have this form (refer image), can be fitted in the engines

   112.910

   112.911

   112.913

   112.914

   112.915

   112.920

   112.921

   112.922

   112.923

   Fig 1: Balancing Shaft Rear And Front Correctional Weight (1 Of 2)

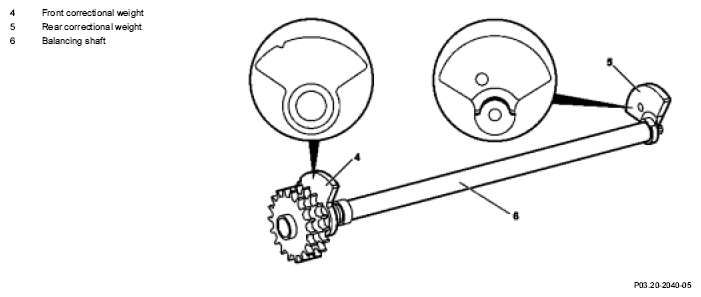

4. Front correctional weight
5. Rear correctional weight
6. Balancing shaft

   Balancing shafts where the correctional weights have this form (refer image), can be fitted in the engines

   112.940

   112.941

   112.942

   112.943

   112.944

   112.945

   112.949

   Fig 2: Balancing Shaft Rear And Front Correctional Weight (2 Of 2)
