Set the basic position of camshafts - AR05.20-P-6020AU

ENGINE 112

ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113.982 in MODEL 463.243/246

ENGINE 113 (except 113.995) in MODEL 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230

Shown on engine 112

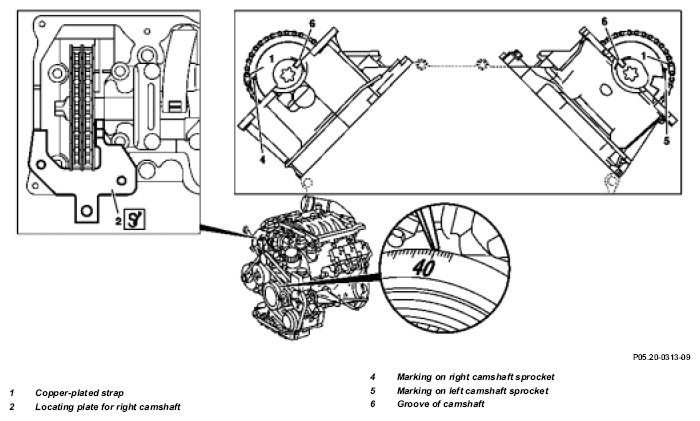

Fig 1: Identifying Basic Position Of Camshafts - Shown On Engine 112

	Removing
1	Remove cylinder head covers	Air filter located at vehicle side.	AR01.20-P-5014B
		Air filter located on engine side.	AR01.20-P-5014BV
2	Check basic position of camshafts	If the basic position of the camshafts is not correct: ↓ Turn engine to 40° after ignition TDC at cylinder 1. The engine must not be turned back; otherwise the timing chain can get jammed.	AR05.10-P-6858V
3	Remove chain tensioner
		Engine 112 in models 211.080/082/261/ 265/280/282,
		Engine 113 in model 211.083/270/283
		Engine 112.945 in model 463.209/232/ 233/244/245/250,	AR05.10-P-7800C
		Engine 112 in models 163, 129,
		Engine 113.962 in model 463.206/240/241 /247/248/249/254,
		Engine 113 (except 113.965/981) in Model 210, 208, 202, 163, 129,
		Engine 113.982 in model 463.243/246
		Engine 112 in Model 170, 202, 203, 208, 209, 210,	AR05.10-P-7800CA
		Engine 113 in models 163.174/175, 209
		Engine 112 in Model 211.061 /065, 220, 230.467,	AR05.10-P-7800AM
		Engine 113 in models 211.070/076/276, 215.373/374/375,220.070/073/074/075 /083/084/170/173/174/175/183/184/875, 230.474/475
4	Remove camshaft Hall sensor
		Engine 112 in models 211.080/082/261/265 /280/282,
		Engine 113 in model 211.083/270/283
		Engine 112.945 in model 463.209/232/233 /244/245/250,	AR15.10-P-2000A
		Engine 112 in Model 129, 163, 170, 202, 203, 208, 209.361/365/461/465, 210, 211.061 /065, 220, 230.467,
		Engine 113 (except 113.990/991) in Model 129, 163, 202, 208, 209.375/376/475/476, 210, 211.070, 215, 220, 230.474/475,
		Engine 113.962 in model 463.206/240/241 /247/248/249/254,
		Engine 113.982 in model 463.243/246
		Engine 113.990 in model 211.076/276,
		Engine 113.991 in models 215.374, 220.074 /174	AR15.10-P-2000RVK
5	Remove right-hand camshaft sprocket	Lift timing chain from camshaft sprocket.
		Open-end wrench	Figure
		Insertion tool	Fig 5
		Torque wrench	Figure
6	Remove left-hand camshaft sprocket	Lift timing chain from camshaft sprocket.
		Open-end wrench	Figure
		Insertion tool	Fig 5
		Torque wrench	Figure
	Install
7	Rotate left-hand camshaft to the basic position and fit locating plate to the camshaft	Open-end wrench	Figure
		Groove of camshaft (6) must point to the center of the cylinder head cover separating surface in direction of inner V.
		Locating plate	Figure
		Place locating plate flush onto left cylinder head and insert into the groove (6) of the camshaft.
		At a 40° crank angle after ignition TDC of cylinder 1 it is possible to rotate the camshaft without the valves coming into contact with the pistons.
8	Rotate right camshaft in basic position and insert locating plate for right camshaft (2) in the camshaft	Open-end wrench	Figure
		Groove of camshaft (6) must point to the center of the cylinder head cover separating surface in direction of inner V.
		Locating plate	Figure
		Place locating plate for right camshaft (2) flush onto the right cylinder head and insert into the groove of the camshaft (6).
		At a 40° crank angle after ignition TDC of cylinder 1 it is possible to rotate the camshaft without the valves coming into contact with the pistons.
9	Install left-hand camshaft sprocket	Place timing chain onto camshaft sprocket.
		Insertion tool	Fig 5
		Bolt of camshaft sprocket engine 112, 113 except 113.969
			*BA05.20-P-1001-01B
10	Install right-hand camshaft sprocket	Place timing chain onto camshaft sprocket.
		Insertion tool	Fig 5
		Bolt of camshaft sprocket engine 112, 113 except 113.969
			*BA05.20-P-1001-01B
11	Install camshaft Hall sensor	Engine 112 in models 211.080/082/261/265 /280/282,
		Engine 113 in model 211.083/270/283
		Engine 112.945 in model 463.209/232/233 /244/245/250,	AR15.10-P-2000A
		Engine 112 in Model 129, 163, 170, 202, 203, 208, 209.361/365/461/465, 210, 211.061 /065, 220, 230.467,
		Engine 113 (except 113.990/991) in Model 129, 163, 202, 208, 209.375/376/475/476, 210, 211.070, 215, 220, 230.474/475,
		Engine 113.962 in model 463.206/240/241 /247/248/249/254,
		Engine 113.982 in model 463.243/246
		Engine 113.990 in model 211.076/276,	AR15.10-P-2000RVK
		Engine 113.991 in models 215.374, 220.074 /174
			*BA15.10-P-1002-03A
12	Installing chain tensioner	Engine 112 in models 211.080/082/261/265 /280/282,
		Engine 113 in model 211.083/270/283
		Engine 112.945 in model 463.209/232/233 /244/245/250,	AR05.10-P-7800C
		Engine 112 in models 163, 129
		Engine 113.962 in model 463.206/240/241 /247/248/249/254,
		Engine 113 (except 113.965/981) in Model 210, 208, 202, 163, 129,
		Engine 113.982 in model 463.243/246
		Engine 112 in Model 170, 202, 203, 208, 209, 210,	AR05.10-P-7800CA
		Engine 113 in models 163.174/175, 209
		Engine 112 in Model 211.061 /065, 220, 230.467,	AR05.10-P-7800AM
		Engine 113 in models 211.070/076/276, 215.373/374/375,220.070/073/074/075 /083/084/170/173/174/175/183/184/875, 230.474/475
	Check
13	Inspect timing		AR05.10-P-6858V
	Check general notes on valve timing, scribe marks	Engine 112, 113	AH05.10-P-1000-01A
		The engine must not be turned back; otherwise the timing chain can get jammed.
14	Install cylinder head covers	Air filter located at vehicle side.	AR01.20-P-5014B
		Air filter located on engine side.	AR01.20-P-5014BV

CAMSHAFT

CAMSHAFT

CAMSHAFT

POSITION SENSOR

Fig 2: Identifying Locating Plate (112 589 00 32 00)

Fig 3: Identifying Locating Plate (112 589 01 32 00)

Fig 4: Identifying Open End Wrench (112 589 00 01 00)

Fig 5: Identifying Insertion Tool (112 589 01 03 00)

Fig 6: Identifying Torque Wrench (001 589 72 21 00)
