Retrofitting telephone (fixed installation) - AN82.70-P-0003MAA
MODEL 220 as of 1.7.00 up to 30.6.01 except CODE (855) TELE AID with CODE (819) 6-disk CD changer in trunk
MODEL 220 as of 1.7.00 up to 30.6.01 except CODE (855) TELE AID with CODE (810) Sound system with CODE (819) 6-disk CD changer in trunk

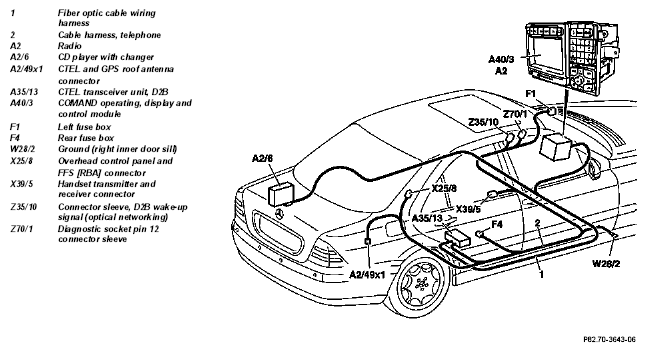

Fig 1: Identifying Telephone (Fixed Installation) Components Location - Model 220 As Of 1.7.00 Up To 30.6.01
| Removal | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion
from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries. |
No fire, sparks, naked flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003I | |||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3.1 | Remove radio | ||
| AR82.60-P-7502I | |||
| 3.2 | Removing and installing operating/display unit with control module | with COMAND (code 352a) operating and display system | |
| AR82.85-P-7472I | |||
| 4 | Remove floor covering in rear | ||
| AR68.20-P-4800M | |||
| 5.1 | Open right front and rear cable ducts | ||
| 5.2 | Open front left and rear cable ducts | ||
| 6 | Remove armrest with console | ||
| 7 | Remove front left and right seats | ||
| AR91.10-P-1000M | |||
| 8 | Remove and install SAM control module with fuse and relay box, front left | ||
| AR54.21-P-1260I | |||
| 9 | Remove rear seat and rear backrest | ||
| Remove rear seat backrest. | AR91.12-P-1620MA | ||
| Remove rear seat backrest with single seats (code 401). | AR91.12-P-1620M | ||
| 10 | Remove seat adjuster | with single seats (code 401). | |
| AR91.10-P-1450M | |||
| 11 | Remove paneling on C-pillar | ||
| 12 | Separate equipment plate below right rear seat | ||
| 13 | Remove right and left-hand trunk lining | ||
| AR68.30-P-4600M | |||
| Installing | |||
| 14 | Retrofit fiber optic cable wiring harness | AN82.70-P-0002-01AM | |
| Covering fiber optic cable | AR82.95-P-0005-01A | ||
| 15 | Retrofit telephone cable harness | AN82.70-P-0002-03MMM | |
| 16 | Install CTEL D2B transceiver unit | ||
| AR82.70-P-8911M | |||
| 17 | Retrofit telephone/GPS antenna | AZ82.70-P-0001-08IA | |
| 18 | Install handset | ||
| AR82.70-P-8915M | |||
| 19 | Retrofit hands-free system microphone | AN82.70-P-8969-04MA | |
| 20 | Fit remaining parts to vehicle | ||
| 21 | Carry out commissioning and operational check |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| Group 82 (see EPC) | Permanently installed CTEL control module | 1 |
| Group 82 (see EPC) | Screw for permanently installed CTEL control module | 2 |
| Group 82 (see EPC) | FFS wiring harness | 1 |
| Group 82 (see EPC) | Optical waveguide module (order with length of 5605 mm) | 1 |
| Group 82 (see EPC) | D2B connector housing | 1 |
| Group 82 (see EPC) | CTEL handset | 1 |
| Group 82 (see EPC) | Mount (handset) | 1 |
| Group 82 (see EPC) | Mount (connector) | 1 |
| Group 82 (see EPC) | Adapter cable | 1 |
| Group 82 (see EPC) | Screw | 2 |
| Group 82 (see EPC) | Retainer plate in center armrest (only necessary for RHS, not required for LHS) | 1 |
| Group 69 (see EPC) | Microphone for hands-free system (only if necessary) | 1 |
| Group 69 (see EPC) | Mirror cover plate (only if necessary) (Color according to interior equipment - 7D431A26AG691A36+equipment) | 1 |
| Group 82 (see EPC) | CTEL antenna assembly (only if necessary) | 1 |
| Group 82 (see EPC) | Adhesive pad (only if necessary) | 1 |
| A000 995 04 14 | Cable fastener (trunk) (only if necessary) | 1 |
| A009 997 53 81 | Grommet (only if necessary) | 1 |
| A006 989 39 71 | Bonding agent, 4299 Scotch-Mount glass primer (only if necessary) | 1 |
