Remove/Install Low Temperature Radiator - AR09.41-P-6831RVK
Engine 113.990 In Models 211.076 /276
Engine 113.991 In Models 215.374, 220.074
Engine 113.992 In Model 230.474
Engine 113.995 In Model 230.472

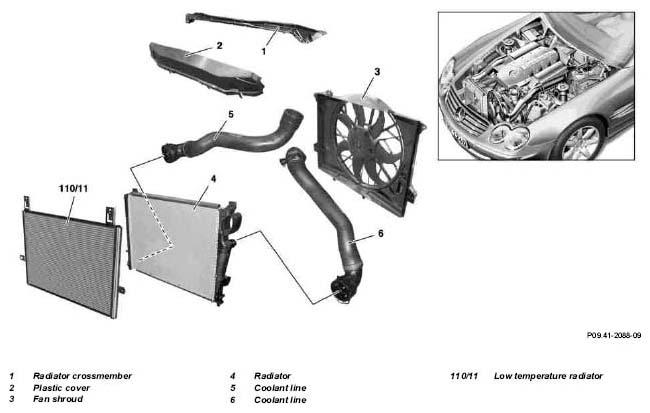

Shown On Model 230.474
| Remove/install | |||
| Risk of injury
to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| 1 | Remove top engine cover | ||
| 2 | Drain coolant at radiator (4) | AR20.00-P-1142RVK | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| *BF20.00-P-1001-02K | |||
| 3 | Remove radiator (4) | Model 230 | AR20.20-P-3865R |
| Model 215, 220 | AR20.20-P-3865AB | ||
| Model 211 | AR20.20-P-3865TV | ||
| 4 | Slacken space saving clamps at low temperature radiator (110/11) | *WH58.30-Z-1005-02A | |
| 5 | Detach coolant hoses at low temperature radiator (110/11) | ||
| 6 | Unscrew bolts at low temperature radiator (110/11) | ||
| 7 | Remove low temperature radiator (110/11) | ||
| 8 | Install in the reverse order | ||
| 9 | Inspect cooling system for leaks | AR20.00-P-1010RVK |
| Number | Designation | Engines 113.992/995 in model 230 | Engine 113.990 | ||
|---|---|---|---|---|---|
| BF20.00-P-1001-02K | Cooling system | Total filling capacity | Liters | ≈13.0 | ≈13.2 |
| Capacity of anticorrosion/ antifreeze agent down to -37°C | Liters | ≈6.5 | ≈6.6 | ||
| Filling capacity of anticorrosion/ antifreeze down to -45°C | Liters | ≈7.3 | ≈7.3 | ||
| Specifications for Operating Fluids | Sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||
| Sheet | BB00.40-P-0325-00A | BB00.40-P-0325-00A | |||
| Number | Designation | Engine 113.991 in model 215 | Engines 113.986/991 in model 220 | ||
|---|---|---|---|---|---|
| BF20.00-P-1001-02K | Cooling system | Total filling capacity | Liters | ≈14.5 | ≈13.5 |
| Capacity of anticorrosion/ antifreeze agent down to -37°C | Liters | ≈7.3 | ≈6.8 | ||
| Filling capacity of anticorrosion/ antifreeze down to -45°C | Liters | ≈8 | ≈7.4 | ||
| Specifications for Operating Fluids | Sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||
| Sheet | BB00.40-P-0325-00A | BB00.40-P-0325-00A | |||
Commercially Available Tools
| Number | Designation |
|---|---|
| WH58.30-Z-1005-02A | Special pliers, Firma Muhr & Bender D-57439 Attendorn |
