Drain/fill in coolant - AR20.00-P-1142RVK
ENGINE 113.992 in MODEL 230.474
ENGINE 113.990 in MODELS 211.076 /276
ENGINE 113.991 in MODELS 215.374, 220.074 /174
ENGINE 113.963 in MODEL 230.475
ENGINE 112.960 in MODEL 170.466
ENGINE 112.961 in MODELS 203.065 /265
ENGINE 113.995 in MODEL 230.472

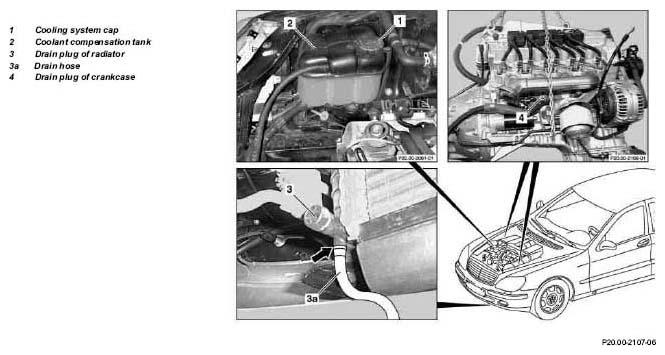

Shown on model 220
MODIFICATION NOTES
| 14.10.04 | Fill coolant using vacuum method added | Step 10 |
| Drain | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 1 | Open engine hood | Model 170 | AR88.40-P-1000G |
| Model 203 | AR88.40-P-1000P | ||
| Model 215, 220 | AR88.40-P-1000M | ||
| Model 211 | AR88.40-P-1000T | ||
| Model 230 | AR88.40-P-1000R | ||
| 2.1 | Detach ground line(s) at battery(ies) | Only when draining coolant at crankcase, on the right, in models 170, 203, 215, 220, 230. |
|
| Model 170 | AR54.10-P-0003A | ||
| Model 203 | AR54.10-P-0003P | ||
| Model 215, 220 | AR54.10-P-0003I | ||
| Model 230 | AR54.10-P-0003R | ||
| 3 | Open cooling system cap (1) at coolant expansion reservoir (2) | Cooling system cap (1) with notch: Turn cooling system cap (1) carefully to first predetent, release pressure, then unscrew cooling system cap (1). 1-stage and 2-stage cooling system cap (1): turn cooling system cap (1) 1/2 revolution anticlockwise, release pressure and then unscrew cooling system cap (1). |
|
| 4 | Remove lower engine compartment paneling | Model 170 | AR61.20-P-1105A |
| Model 203 | AR61.20-P-1105P | ||
| Model 211 | AR61.20-P-1105T | ||
| Model 215, 220 | AR61.20-P-1105M | ||
| Model 230 | AR61.20-P-1105R | ||
| Drain coolant from radiator | |||
| 5 | Push drain hose (3a) onto engine radiator (3) drain plug (arrow), engine radiator (3) open drain plug and drain coolant | ||
| 6 | Close engine radiator (3) drain plug and detach coolant (3a) drain hose at fitting (arrow) | ||
| Drain coolant at crankcase | |||
| 7.1 | Slide drain hose onto crankcase drain plug (4), open crankcase drain plug (4) and drain coolant | Models 170, 203, 215, 220, 230 |
|
| 8.1 | Detach drain hose on crankcase drain plug (4) and screw crankcase drain plug (4) tight | Model 170, 203, 215, 220, 230 | |
| *BA20.00-P-1001-02B | |||
| 9 | Lower vehicle | ||
| Filling | |||
| 10 | Pour in coolant and bleed cooling system | AR20.00-P-1142-04A | |
| Coolant specifications | Sheet 310.1 | BB00.40-P-0310-01A | |
| Anticorrosion/antifreeze agents (Sheet 325.0) | Sheet 325.0 | BB00.40-P-0325-00A | |
| *BF20.00-P-1001-02K | |||
| Notes on coolant level | Model 211, 215, 220, 230 with engine 113 | AH20.00-P-1142-01V | |
| Notes on coolant level | Models 170, 203 with engine 112 | AH20.00-P-1142-01P | |
| 11 | Inspect cooling system for leaks | AR20.00-P-1010RVK | |
| 12 | Install lower engine compartment paneling | Model 170 | AR61.20-P-1105A |
| Model 203 | AR61.20-P-1105P | ||
| Model 211 | AR61.20-P-1105T | ||
| Model 215, 220 | AR61.20-P-1105M | ||
| Model 230 | AR61.20-P-1105R | ||
| 13.1 | Connect up ground line(s) at battery(ies) | Only when coolant has been drained at crankcase on the right. | |
| Model 170 | AR54.10-P-0003A | ||
| Model 203 | AR54.10-P-0003P | ||
| Model 215, 220 | AR54.10-P-0003I | ||
| Model 230 | AR54.10-P-0003R | ||
| 14.1 | Perform basic programming | Only if ground line(s) on battery(ies) were disconnected. | |
| Model 170 | AR00.19-P-0200B | ||
| Model 203 | AR00.19-P-0200P | ||
| Model 215, 220 | AR00.19-P-0200M | ||
| Model 230 | AR00.19-P-0200R | ||
| 15.1 | Connect up STAR DIAGNOSIS, read and erase diagnostic trouble code memory | Only if ground line(s) on battery(ies) were disconnected. | |
| Connect up STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 16 | Close engine hood | Model 170 | AR88.40-P-1000G |
| Model 203 | AR88.40-P-1000P | ||
| Model 215, 220 | AR88.40-P-1000M | ||
| Model 211 | AR88.40-P-1000T | ||
| Model 230 | AR88.40-P-1000R |
| Number | Designation | Engines 112, 113.940/941/942/943/944/945/946/948/960/961/963/964/965/966/967/968/971/980/981/984/986/987/988/990/991/992/995 | |
|---|---|---|---|
| BA20.00-P-1001-02B | Coolant drain plug on crankcase | Nm | 12 |
| Number | Designation | Engine 113.990 | Engine 113.991 in model 215 | Engine 113.992/995 in model 230 | ||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02K | Cooling system | Total filling capacity | Liters | ≈ 13.2 | ≈ 14.5 | ≈ 13.0 |
| Capacity of anticorrosion/antifreeze agent down to -37°C | Liters | ≈ 6.6 | ≈ 7.3 | ≈ 6.5 | ||
| Filling capacity of anticorrosion/antifreeze down to -45°C | Liters | ≈ 7.3 | ≈ 8 | ≈ 7.3 | ||
| Specifications for Operating Fluids | Sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||
| Sheet | BB00.40-P-0325-00A | BB00.40-P-0325-00A | BB00.40-P-0325-00A | |||
| Number | Designation | Engine 113.963 in model 230.475 | Engine 112.961 in model 203.065/265 AMG | Engine 112 in model 170 | ||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02K | Cooling system | Total filling capacity | Liters | ≈ 11.5 | ≈ 10.5 | ≈ 8 |
| Capacity of anticorrosion/antifreeze agent down to -37°C | Liters | ≈ 5.8 | - | ≈ 4 | ||
| Filling capacity of anticorrosion/antifreeze down to -45°C | Liters | ≈ 6.5 | - | ≈ 4.5 | ||
| Specifications for Operating Fluids | Sheet | BB00.40-P-0310-01A | - | BB00.40-P-0310-01A | ||
| Sheet | BB00.40-P-0325-00A | - | BB00.40-P-0325-00A | |||
| Number | Designation | Engine 113.986/991 in Model 220 | ||
|---|---|---|---|---|
| BF20.00-P-1001-02K | Cooling system | Total filling capacity | Liters | ≈ 13.5 |
| Capacity of anticorrosion/antifreeze agent down to -37°C | Liters | ≈ 6.8 | ||
| Filling capacity of anticorrosion/antifreeze down to -45°C | Liters | ≈ 7.4 | ||
| Specifications for Operating Fluids | Sheet | BB00.40-P-0310-01A | ||
| Sheet | BB00.40-P-0325-00A | |||
