Retrofit iPod - AZ82.60-P-0014TT

MODEL 211.2## 1# with CODE (526) COMAND (without navigation) except vehicles with FSE11, except vehicles with FSE12

MODEL 211.2## 1# with CODE (527) COMAND APS (with navigation) except vehicles with FSE11, except vehicles with FSE12

MODEL 211.2## 1# with CODE (528) HIGH Class USA except vehicles with FSE11, except vehicles with FSE12

MODEL 211.2## 1# with CODE (530) COMAND APS USA (with navigation system) except vehicles with FSE11, except vehicles with FSE12

Shown on model 211 up to model refinement 06/2006

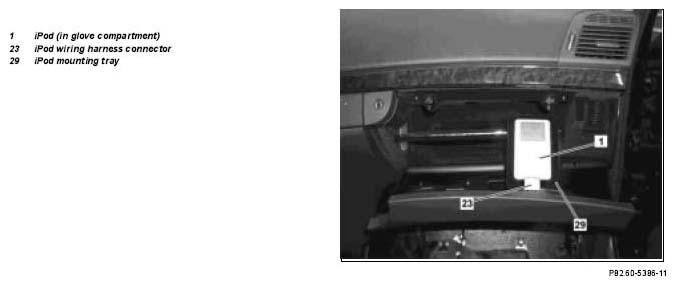

Fig 1: Identifying iPod (In Glove Compartment), iPod Wiring Harness Connector And iPod Mounting Tray (Shown On Model 211)

	Removal
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line
			AR54.10-P-0003TA
	Notes on battery	All models	AH54.10-P-0001-01A
2	Remove inner side paneling in load compartment	On left and right.
			AR68.30-P-1180T
3	Remove covering under load compartment inner paneling at left side
4	Remove rear passenger compartment side trim panel	Undo at left and right far enough to enable the iPod wiring harness to be routed.
			AR68.30-P-4780T
5	Remove front section of load compartment floor
			AR68.20-P-4811T
6	Remove SAM signal acquisition and actuation module control unit with fuse and relay module from the luggage compartment	Do not disconnect electrical connectors.
			AR54.21-P-1258TA
7	Remove paneling on B-pillar	Undo in lower area to the right far enough until the cable duct is accessible.
			AR68.30-P-4700T
8	Remove front floor covering (right)
			AR68.20-P-2070T
9	Remove COMAND operating, display and controller unit
		With COMAND (without navigation system), code 526, with COMAND APS (with navigation system), code 527.	AR82.85-P-1000T
	Install
10	Retrofit iPod interface wiring harness		AZ82.60-P-0001-01TA
11	Retrofit iPod wiring harness	In both variants the glove compartment remains installed.
		With code air conditioning (or Tempmatic for USA), code 580. As of 09.2004 with comfort automatic air conditioning, code 581.	AZ82.60-P-0001-02T
		Up to 08.2004 with comfort automatic air conditioning, code 581.	AZ82.60-P-0001-02TTT
12	Retrofit iPod interface		AZ82.60-P-0001-03T
13	Glue in iPod cradle (29) in glove box using MB universal glue	Can be stuck to clipboard or base of glove compartment.
		MB universal glue	*BR00.45-Z-1003-02A
14	Connect iPod (1) to iPod wiring harness plug (23) in glove compartment
15	Place iPod (1) into the iPod cradle (29)
16	Install remaining parts onto vehicle	Steps 9 to 1.
17	Perform retrofit variant coding	Only perform if telephone not installed.
			AN82.61-P-0001-05T
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
