Remove/install cross member below instrument panel - AR68.10-P-1120Q
MODEL 209.3
| Remove/Install | |||
|---|---|---|---|
| Notes on self-locking nuts and bolts | All models | AH00.00-N-0001-01A | |
| Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Detach wiper system and lay down to side | AR82.30-P-6400P | |

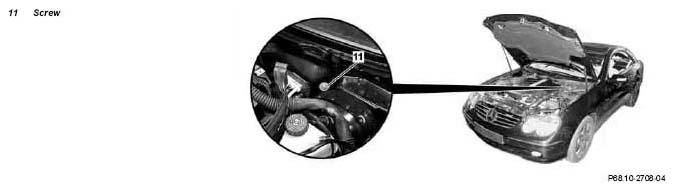

| 2 | Unscrew bolt (11) | ||
| Risk of injury. Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |

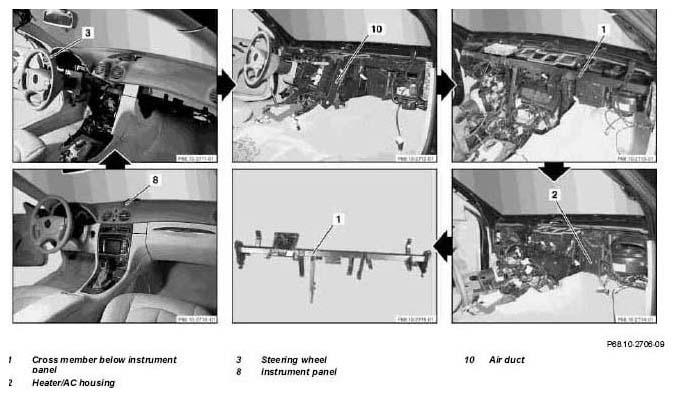

| 3 | Remove instrument panel (8) | AR68.10-P-1000Q | |
| 4 | Remove center console reinforcement with air ducts for rear compartment ventilation. | ||
| 5 | Remove jacket tube (4) from cross member below instrument panel (1) and fold into footwell together with steering wheel. | ||
| With mechanically adjustable jacket tube | AR46.10-P-0400Q | ||
| With electrically adjustable jacket tube | AR46.10-P-0400QE | ||
| 6 | Open all cable straps on cross member below instrument panel (1) and expose lines | ||
| 7 | Unclip cable duct from cross member below instrument panel (1) | ||

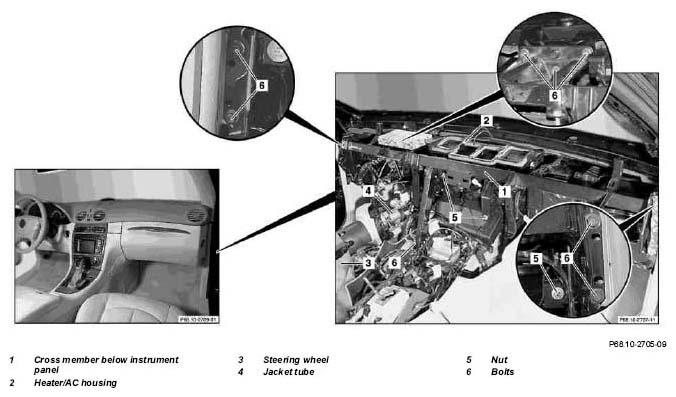

| 8 | Unscrew bolts (6) | ||
| 9 | Unscrew nuts (5). | ||
| 10 | Remove cross member below instrument panel (1) | ||
| 11 | Install in the reverse order |
