Replace complete B-pillar - AR63.20-P-1350Q: Notes

MODEL 209.3

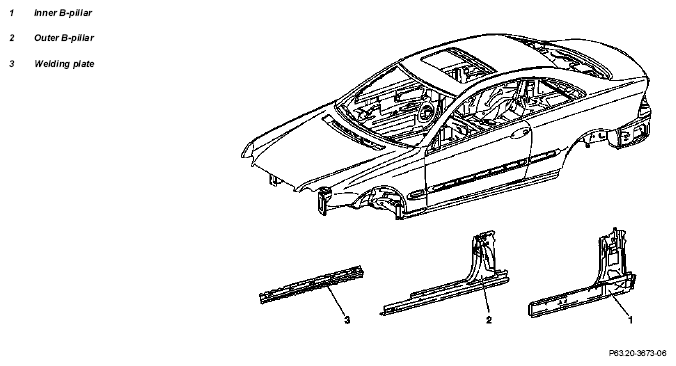

Fig 1: Identifying Inner B-Pillar, Outer B-Pillar And Welding Plate
G04959087Courtesy of MERCEDES-BENZ USA
REMOVING Removing
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. AS00.00-Z-0017-01A
    Deburr repair panels.
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  caused by high voltage used for electric welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding spatter and UV light while welding. Risk of poisoning  caused by inhaling welding fumes. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. AS00.00-Z-0007-01A
NOTES General information on repairs to body All models AH60.00-N-0001-01A
NOTES Measures for preventing damage to vehicles or components when performing electric welding work All models AH00.00-N-0005-01A
NOTES Notes on paintwork repairs All models AH98.00-P-9408-02A
IMPORTANT General information on MB materials All models AH98.00-P-9409-03A
1 Remove left front door   AR72.10-P-0500Q
2 Remove left front seat   AR91.10-P-1000Q
3 Remove floor mats
4 Remove fold-down rear backrest Model 209.3   AR91.12-P-1720Q
5 Remove rear seat cushion Model 209.3   AR91.12-P-1020P
6 Remove or detach electric lines and vacuum lines in area to be repaired
7 Remove detachable parts in area to be repaired
8 Cover all detachable body components remaining in vehicle (area to be repaired) Tarp (fire-resistant) *WH58.30-Z-1001-40A
9 Equip straightening bench with modular or crossmembers and straightening tools IMPORTANT Observe the assembly plans provided.
Celette straightening bench (MUF 5, MUF 7) *WE58.40-Z-1001-01E
Celette straightening bench M8S *WE58.40-Z-1001-01E
Celette straightening bench Sevenne *WE58.40-Z-1001-01E
Set of Celette module members 955.940 *WE58.40-Z-1007-01E
Celette additional member 955.908 *WE58.40-Z-1008-01E
Celette straightening bench 7203.300 (for model 203) *WE58.40-Z-1029-01A
Car-Bench straightening bench BT 17 *WE58.40-Z-1003-01E
Car-Bench straightening bench BT 43/1 *WE58.40-Z-1003-01E
Celette straightening bracket set 7203.309 (for model 203), as supplement to 7203.300 *WE58.40-Z-1031-01A
Celette straightening set 7203.310 (for model 203), only for new orders, includes supplement 7203.309 *WE58.40-Z-1032-01A
Car-Bench universal crossmember set A296 *WE58.40-Z-1010-01E
Car-bench straightening set 82434 (for model 203) *WE58.40-Z-1030-01A
Multi-Z straightening set system MZ 450.000 *WE58.40-Z-1006-01E
10 Set vehicle onto straightening bench using two-column lift and fasten   *WE58.40-Z-1001-05A
IMPORTANT General information on body repair   AH60.00-N-0001-01A
11 Set up side portal frame with inspection and welding device IMPORTANT Observe the assembly plans provided.
SPECIAL TOOL Side portal frame Figure
SPECIAL TOOL Inspection and welding device Figure
SPECIAL TOOL Inspection and welding device Figure
12 Remove outer B-pillar together with side longitudinal member   AR63.20-P-1370Q
13 Separate inner B-pillar   AR63.20-P-1350-01Q
SPECIAL TOOL Spot weld milling cutter Figure
COMMERCIALLY AVAILABLE TOOLS Ball cutter, dia. 12 mm *WH58.30-Z-1002-01A
COMMERCIALLY AVAILABLE TOOLS Vario Drill WS 91 spot weld removing tool *WH58.30-Z-1006-01A
COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
COMMERCIALLY AVAILABLE TOOLS Abrasive disk, dia. 115 mm, 80m/s (max. 13, 250 RPM) *WH58.30-Z-1024-04A
COMMERCIALLY AVAILABLE TOOLS Cutting disk, 65 mm dia., 80m/s (max. 23, 500 RPM) *WH58.30-Z-1021-04A
Drill (electric/pneumatic) *WE58.40-Z-1001-03A
Straight grinder (electric/pneumatic) *WE58.40-Z-1002-03A
Angle grinder (electric/pneumatic) *WE58.40-Z-1003-03A
Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
14 Prepare inner B-pillar for installation   AR63.20-P-1350-02Q
COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
Drill (electric/pneumatic) *WE58.40-Z-1001-03A
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
15 Install inner B-pillar   AR63.20-P-1350-03Q
SPECIAL TOOL Side portal frame Figure
SPECIAL TOOL Inspection and welding device Figure
SPECIAL TOOL Inspection and welding device Figure
COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
COMMERCIALLY AVAILABLE TOOLS Electrode miller *WH58.30-Z-1003-01A
IMPORTANT General information on riveting   AH60.00-P-0003-01N
COMMERCIALLY AVAILABLE TOOLS PowerBird blind rivet tool *WE58.40-Z-1003-14A
COMMERCIALLY AVAILABLE TOOLS Hand riveter *WH58.30-Z-1003-29A
COMMERCIALLY AVAILABLE TOOLS Clamping pliers *WH58.30-Z-1003-02A
COMMERCIALLY AVAILABLE TOOLS Flat/round head rivet, Polygrip 6.4 x 14 mm *BR00.45-Z-1001-13A
COMMERCIALLY AVAILABLE TOOLS screw-on pliers, dia. 6.4 mm -Clamping *WH58.30-Z-1038-02A
range 0-15 mm, identification color silver Inert gas welder *WE58.40-Z-1001-02A
Spot welder *WE58.40-Z-1002-02A
Drill (electric/pneumatic) *WE58.40-Z-1001-03A
Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
16 Install outer B-pillar with side longitudinal member.   AR63.20-P-1370Q
17 Release vehicle from straightening bench and lift with two-column lift, remove straightening bench Two-post lift *WE58.40-Z-1001-05A
18 Clean weld joints and metal flanges with wire brush
19 Clean areas to be repaired and prime with primer filler
20 Seam sealing following repair IMPORTANT Supplement standard seals with MB preservative. AR97.10-P-4000Q
Sealant *BR00.45-Z-1003-01A
Seam sealant, sprayable 310 ml *BR00.45-Z-1041-01A
21 Paint repair areas and adjacent surfaces
22 Cavity preservation following repair work
NOTES Notes on cavity preservation Model 209 AH97.20-P-0001-01B
23 Install electric lines and vacuum lines in repair area
24 Remove fold-down rear backrest Model 209.3 AR91.12-P-1720Q
25 Remove rear seat cushion Model 209.3 AR91.12-P-1020P
26 Install left front seat   AR91.10-P-1000Q
27 Install floor mats
28 Install left front door   AR72.10-P-0500Q
29 Install all removed detachable body components
Fig 2: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G04959088Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Inspection And Welding Device (203 589 00 23 00)
G04959089Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Inspection And Welding Equipment (209 589 00 23 00)
G04959090Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Side Portal Frame (210 589 17 23 00)
G04959091Courtesy of MERCEDES-BENZ USA
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-01A Ball cutter, dia. 12 mm
WH58.30-Z-1003-01A Electrode miller
WH58.30-Z-1006-01A Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1003-02A Clamping pliers
WH58.30-Z-1038-02A Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 RPM)
WH58.30-Z-1024-04A Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM)
WH58.30-Z-1003-29A Hand riveter
WH58.30-Z-1001-40A Tarp (fire-resistant)
WORKSHOP EQUIPMENT

WE58.40-Z-1029-01A Celette straightening bracket set 7203.300 (model 203)
WE58.40-Z-1030-01A Car bench straightening bracket set 82434, (model 203)
WE58.40-Z-1031-01A Celette straightening bracket set 7203.309 (model 203), as supplement to 7203.300
WE58.40-Z-1032-01A Celette straightening bracket set 7203.310 (model 203), only with new ordering contains addition 7203.309
WE58.40-Z-1001-01E Celette straightening bench
WE58.40-Z-1003-01E Car-Bench straightening bench
WE58.40-Z-1006-01E Celette Multi-Z straightening set system
WE58.40-Z-1007-01E Celette module crossmember set 955.940
WE58.40-Z-1008-01E Celette additional member 955.908
WE58.40-Z-1010-01E Car-Bench universal cross member set A 296
WE58.40-Z-1001-02A Inert gas welder
WE58.40-Z-1002-02A Spot welder
WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1002-03A Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A Angle grinder (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
WE58.40-Z-1001-05A Two-post lifting platform
WE58.40-Z-1003-14A Blind rivet tool
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A Sealant A 001 989 63 20
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1003-05A Preservation agent A 000 986 72 70 05
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1001-13A Rivet A 003 990 35 97
