Remove/install front door - AR72.10-P-0500Q

MODEL 209

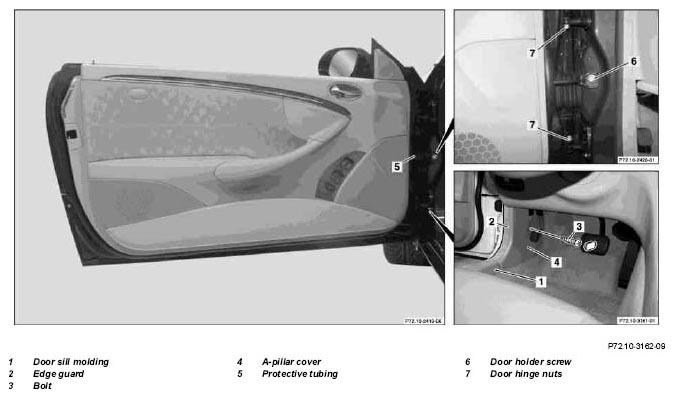

Fig 1: Identifying Front Door Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

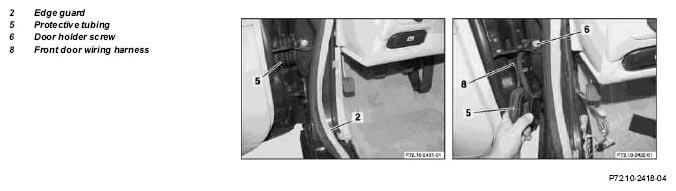

Fig 2: Identifying Front Door Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

28.3.07

Notes on replacing a door added

	Remove/install
1	Open front door
2	Open window	The window can be damaged when transporting the door.
3	Remove door sill molding (1)	Mounting wedge	Fig 4
4	Remove edge guard (2) in area of A-pillar cover (4)
5	Unclip cap from A-pillar cover (4)
6	Unscrew bolts (3) from A-pillar cover (4)
7	Unclip A-pillar cover (4) and remove
8	Open cable guide
9	Disconnect connectors from front door on door separation point
10	Unclip protection hose (5) from A-pillar and front door and pull downward	Mounting wedge	Fig 4
11	Remove front door wiring harness (8) from A-pillar guide
12	Unscrew door holder bolt (6)	Screw for door holder on A-pillar.	*BA72.10-P-1003-01A
13	Unscrew nuts for door hinge (7)	Nuts on door hinge.	*BA72.10-P-1010-01A
14	Remove front door upward	When replacing a door, perform seam sealing and cavity preservation.
15	Install in the reverse order
16	Check gap on front door, adjust if necessary		AR72.10-P-0550P
		Feeler gauge	Fig 3
		Gap dimension	*BE60.00-P-1002-01G
		Gap dimension	*BE60.00-P-1005-01G
17	Carry out function check

TEST AND ADJUSTMENT FOR GAP DIMENSIONS

Number	Designation				Model 209.3	Model 209.4
BE60.00-P-1002-01G	Gap dimension	Front door to A-pillar	Dimension "D"	mm	-	1
		Front door to fender	Dimension "E"	mm	3.5 (-0.5/+1)	3.5 (-0.5/+1)
		Front door to rear fender	Dimension "F"	mm	3.5 (-0.5/+1)	3.5 (-0.5/+1)
			See picture		AR60.00-P-0700-01Q	AR60.00-P-0700-01QA
BE60.00-P-1005-01G	Gap dimension	Front door window and rear side window	Dimension "Q"	mm	4.5 (±0.5)	8 (+1)
		Front door window and soft top	Dimension "R"	mm	-
			See picture		AR60.00-P-0700-01Q	AR60.00-P-0700-01QA

FRONT DOOR

Number	Designation		Model 209
BA72.10-P-1003-01A	Bolt at door holder to A-pillar	Nm	32
BA72.10-P-1010-01A	Nut at door hinge	Nm	32

Fig 3: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
