Remove/install fan shroud - AR20.40-P-6800GX
ENGINES 113.993 in MODEL 463.270 /271
| Remove/install | |||
| 1 | Remove air filter | AR09.10-P-1150GX | |

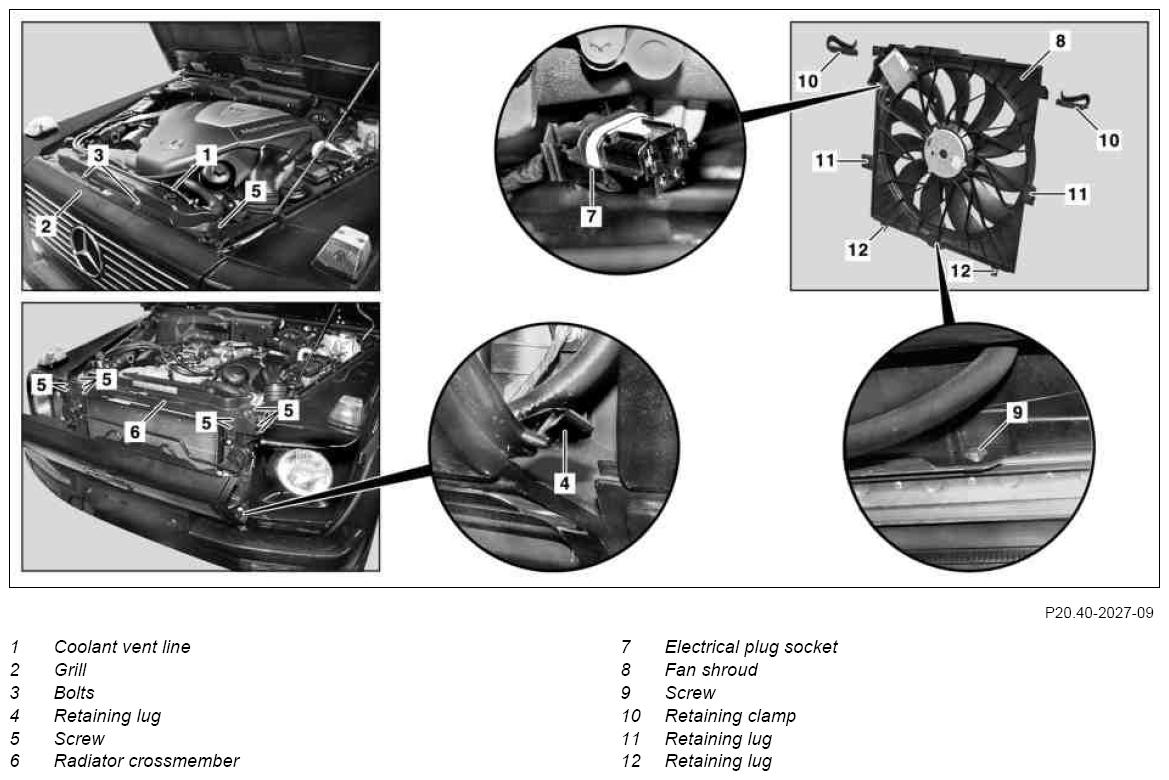

| 2 | Detach the coolant vent line (1) from the radiator and set aside | ||
| 3 | Remove grill (2). | AR88.00-P-2115GM | |
| 4 | Remove bolts (5) of radiator crossmember (6) | *BA83.30-P-1014-01C | |
| 5 | Remove radiator crossmember (6) | ||
| 6 | Detach the electrical plug socket (7) from fan shroud (8) | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 7 | Lift/jack up vehicle | AR00.60-P-1000G | |
| 8 | Remove underride guard | Model 463.270 | |
| Model 463.271 with AMG stainless steel underride guard. | AR88.30-P-0010MG | ||
| 9 | Remove bolt (9) at fan shroud (8) | ||
| 10 | Remove retaining clamps (10) | ||
| 11 | Pull fan shroud (8) up and out of the guides of the radiator and the lower radiator mounting bracket | ||
| 12 | Install in the reverse order |
AIR CONDITIONING
| Number | Designation | Model 463 | |
|---|---|---|---|
| BA83.30-P-1014-01C | Bolt, radiator crossmember to front end | Nm | 19 |
