Remove/install air cleaner housing - AR09.10-P-1150GX

ENGINE 113.993 in MODEL 463.270 /271

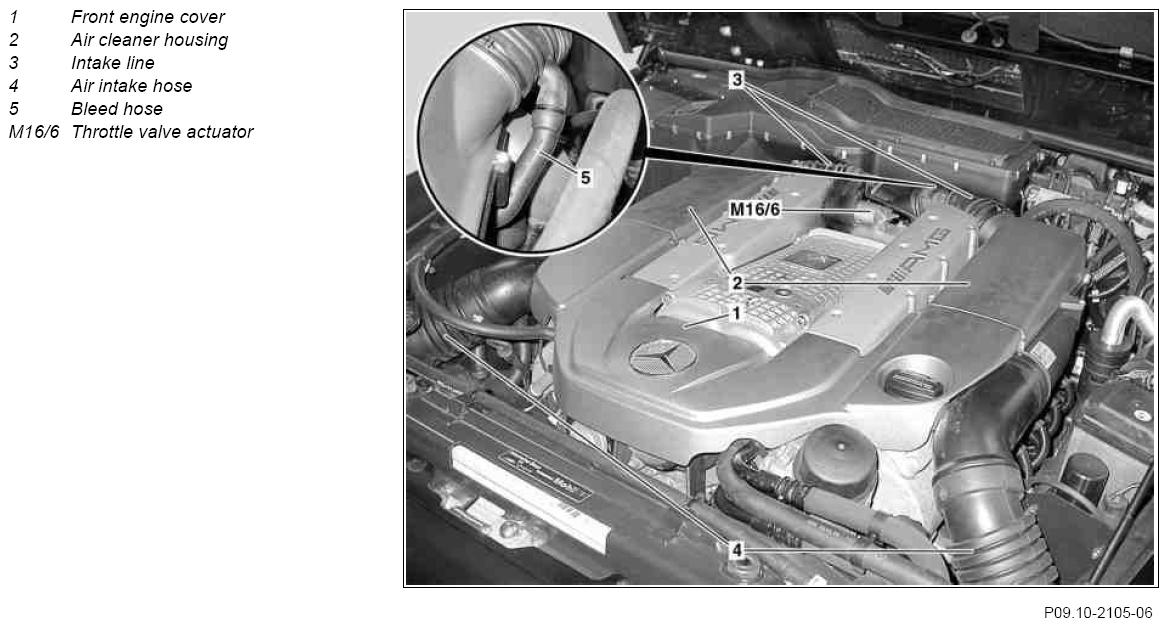

Fig 1: Identifying Front Engine Cover, Air Cleaner Housing, Intake Line, Air Intake Hose, Bleed Hose And Throttle Valve Actuator

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1	Remove the front engine cover (1)	Pull off the front engine cover (1) towards the top.
2	Detach the air intake hoses (4) at the air cleaner housing (2)
3	Pull the air cleaner housing (2) towards the top from the cylinder head covers.	Installation:  Apply a little lubricant to the retaining rubbers on the cylinder head covers.	*BR00.45-Z-1010-06A
4	Detach the intake line (3) of the throttle valve actuator (M16/6)	Installation:  Apply a little lubricant to the sealing ring of the throttle valve actuator (M16/6) in the intake line (3).	*BR00.45-Z-1010-06A
5	Detach the bleed hose (5) from the intake line (3)
6	Lift off the air cleaner housing (2) with the intake line (3) from the engine
7	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
