Remove/install upper control panel control unit - AR54.21-P-1262Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 as of 1.6.04
MODIFICATION NOTES
| 24.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
| 1.1 | Transfer basic data from upper control panel control unit (N72/1) to STAR DIAGNOSIS | When replacing upper control panel control unit (N72/1). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove upper control panel control unit (N72/1) | ||

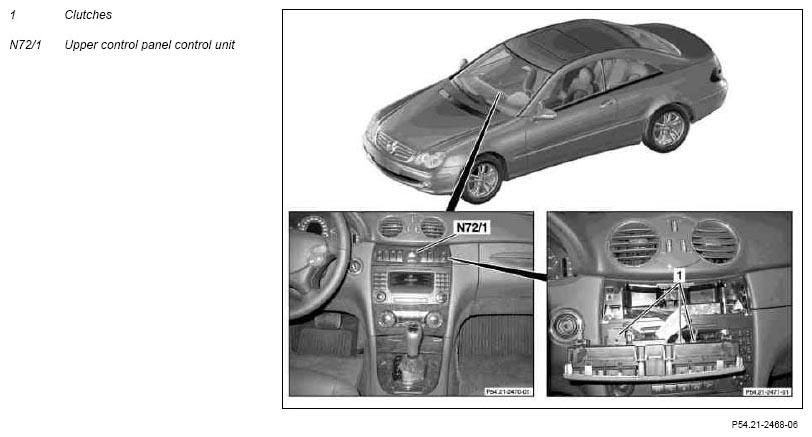

| Fig 2 | |||
| 3 | Disconnect connectors (1) | ||
| 4 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
