Remove/install control and operating unit - AR83.40-P-6350QA
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 as of 1.6.04
Code 581 Comfort automatic air conditioning is shown
MODIFICATION NOTES
| 16.5.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
| 1 | Remove cover on gearshift lever | Vehicles without code P98 Black Series | AR68.20-P-2310QA |
| Vehicles with code P98 Black Series | AR68.20-P-2310QBS | ||
| 2 | Remove ashtray from front center console | AR68.20-P-2400P | |

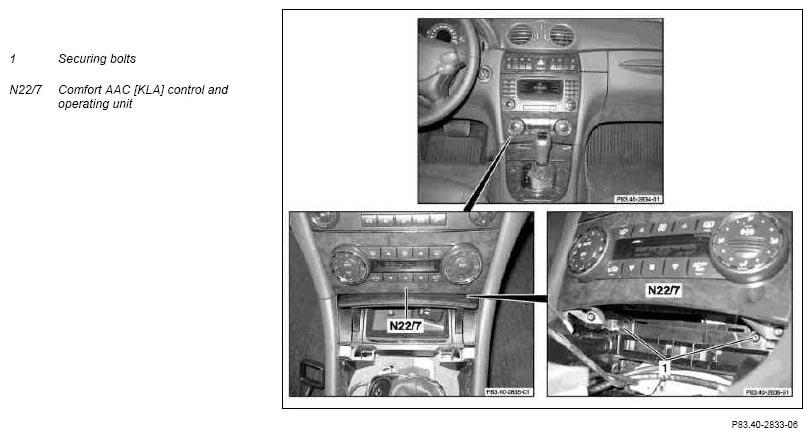

| 3 | Unscrew mounting bolts (1) of comfort AAC [KLA] control and operating unit (N22/7) | ||
| 4 | Detach comfort AAC [KLA] control and operating unit (N22/7) | ||
| 5 | Release and disconnect connectors | ||
| 6 | Install in the reverse order |
