Remove/install ashtray housing in front center console - AR68.20-P-2400P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203, 209
Shown on model 203.0
MODIFICATION NOTES
| 29.5.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
| 1 | Remove cover on gearshift lever | Model 203 | AR68.20-P-2310P |
| Model 209 up to 31.5.04 | AR68.20-P-2310Q | ||
| Model 209 as of 1.6.04 without code P98 Black Series |
AR68.20-P-2310QA | ||
| Model 209 with code P98 Black Series | AR68.20-P-2310QBS | ||
| 2.1 | Actuate clutch pedal and engage second gear | with manual transmission | |
| 2.2 | Actuate selector lever release actuator and move selector lever rod toward rear | With automatic transmission | |
| Function of shift lock override | Model 203 with transmission 722.6 | GF27.10-P-3023P | |
| Function of shift lock override | Model 209 with transmission 722.6 | GF27.10-P-3023Q | |
| Function of shift lock override | Model 203, 209 with transmission 722.9 | GF27.10-P-3023NT | |

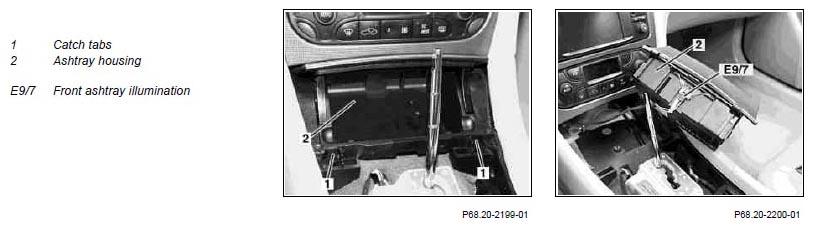

| 3 | Open ashtray housing (2) | ||
| 4 | Press catch tabs (1) back | ||
| 5 | Unscrew ashtray housing (2) | ||
| 6 | Disconnect electrical connector for front ashtray illumination (E9/7) on ashtray housing (2) | ||
| 7 | Install in the reverse order |
