Remove/install steering column module - AR54.25-P-2802PQ
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 as of 1.6.04
MODIFICATION NOTES
| 25.11.08 | Perform initialization of DTR control unit after replacing steering column tube module, added | Operation step 7 |
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| 1 | Remove transmitter key from electronic ignition switch control unit | ||
| 2 | Remove steering wheel | AR46.10-P-0100P | |

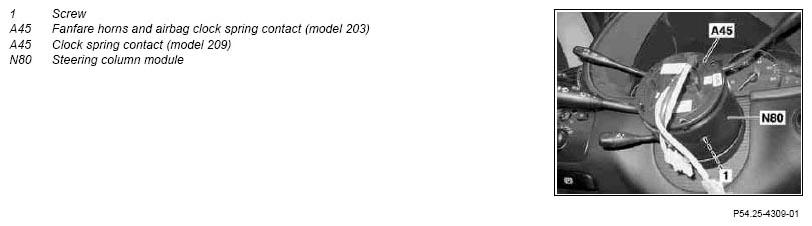

| 3 | Secure clock spring contact (A45) against twisting | ||
| 4 | Remove screw (1). | ||
| 5 | Removing steering column tube module (N80) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform initialization of DTR control unit with STAR DIAGNOSIS | After replacing steering column tube module (N80) on vehicles with code (219) Distronic (DTR) |
