Warning display, location / task / design / function - GF54.65-P-4104TA
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209.3 /4 with CODE (220a) Parktronic System (PTS)

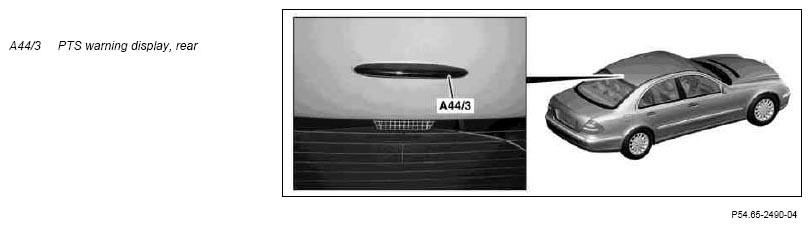

Rear PTS warning indicator
Shown on model 211.0
| Warning display, location | The PTS warning display, rear (A44/3) is located in the rear area of the headliner. | |
| Warning display, task | To display the distance to an obstacle in the rear monitoring range. When the minimum distance is not reached, output of an acoustic signal. |
|
| Warning display, design | The rear PTS warning indicator (A44/3) consists of the LCD bar display (model 209) or the LEDs (model 211), the sound source and microprocessor which evaluates and converts the data telegrams of the Parktronic control unit. | |
| Warning display, function | Models 209.3/4 | GF54.65-P-4104-01Q |
