Steering column module location/task - GF54.21-P-4125Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3 /4

Shows model 209.3

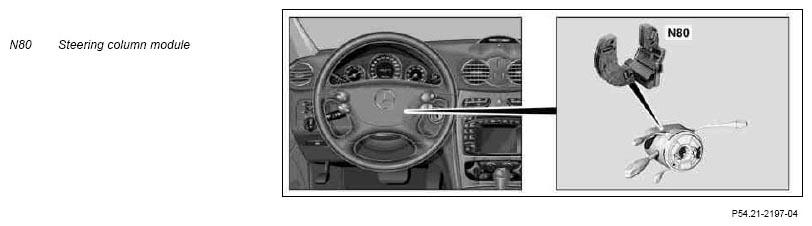

Fig 1: Locating Steering Column Module
G07718204Courtesy of MERCEDES-BENZ USA
Steering column module, location The steering column module (N80) is located on the steering column.
Steering column module, task Models 209.3/4 GF54.21-P-4104-02QA
