Lamp switch module, location/task/design - GF54.25-P-4103A

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3 /4

Shown on model 203 with halogen headlamps

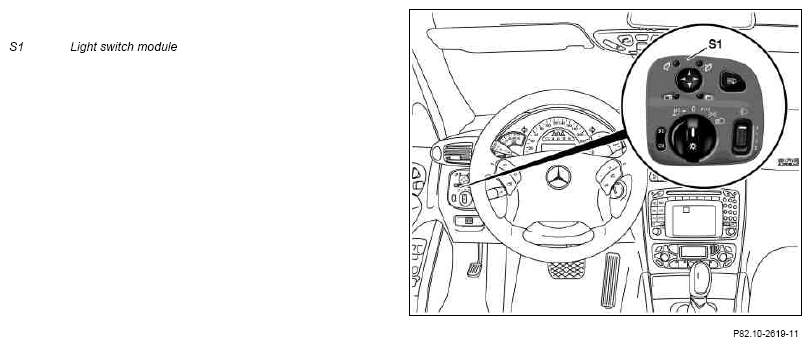

Fig 1: Locating Light Switch Module

Courtesy of MERCEDES-BENZ USA

Light switch module, location	The light switch module (S1) is located in the instrument panel at the bottom left.
Lamp switch module, task	The following controls are combined in the light switch module (S1): Exterior lights Manual headlamp range adjustment (for halogen headlamps only) Headlamp cleaning system Outside mirror adjustment
Lamp switch module, design		GF54.25-P-4103-01A
