Lamp switch module, design - GF54.25-P-4103-01A

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

Shown on model 203

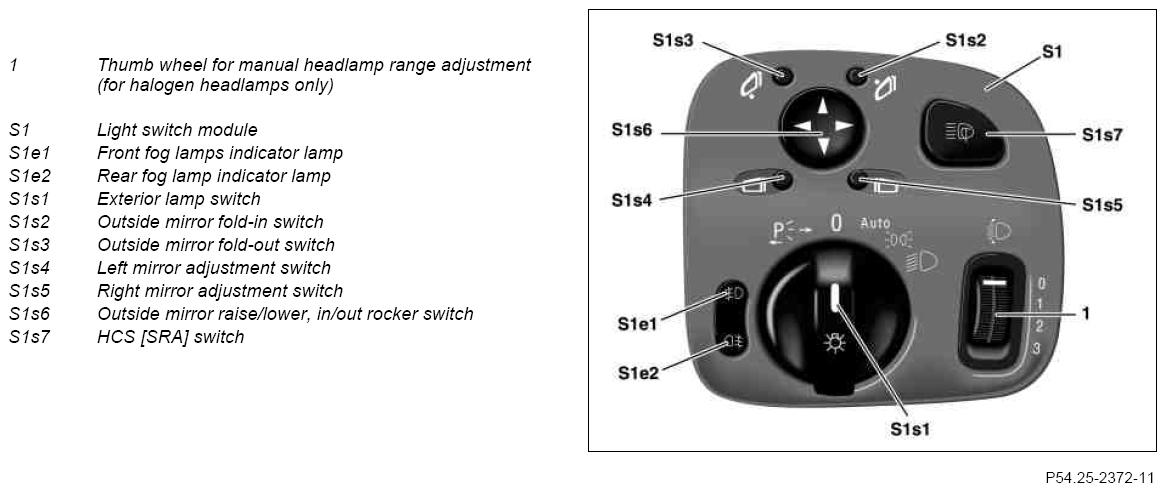

Fig 1: Design Of Lamp Switch Module

Courtesy of MERCEDES-BENZ USA
