Removal, installation |
|
|
| 1 |
Remove door liner on front door |
|
AR72.10-P-1000G |
| 2 |
Remove exterior door handle on front door |
|
AR72.10-P-2400G |
| 3 |
Pull door foil off of inner door panel |
 Installation
: Replace door foil if damaged |
|
| 4 |

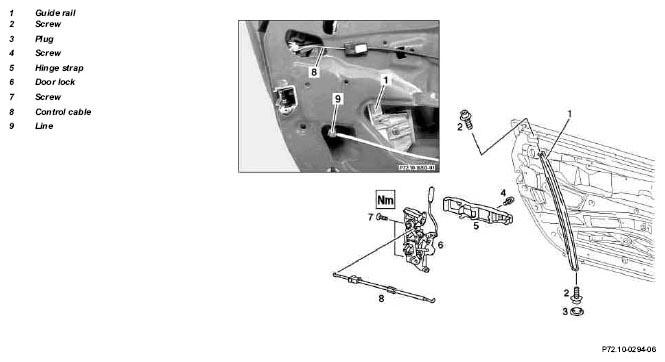

Remove plug (3), unscrew screws (2) and remove guide rail (1) downward through installation opening |
Mark installed position of guide rail (1) |
|
| 5 |
Unscrew screw (4) and remove hinge strap (5) |
Installation
: Secure screw (4) with screw securing agent |
|
| 6 |
Unhook control cable (8) |
|
|
| 7 |
Disconnect line (9) from vacuum element on door lock (6) |
|
|
| 8 |
Unscrew screws (7) and remove door lock (6) downward through installation opening |
 |
*BA72.10-P-1006-01A |
| 9 |
Reinstall in opposite order |
|
|
