Removing and installing door liner on front door - AR72.10-P-1000G

MODEL 170

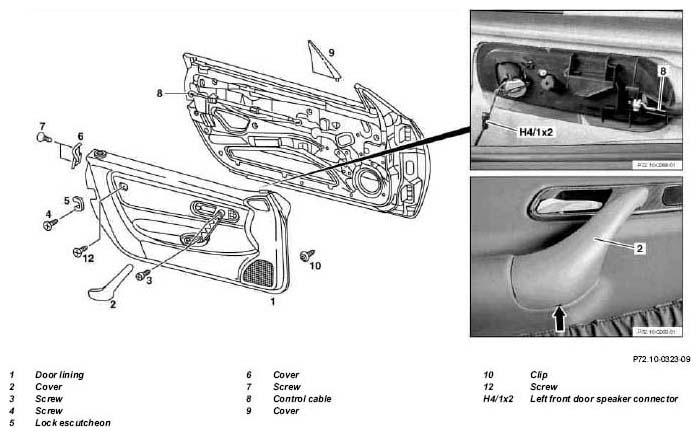

Fig 1: Identifying Door Liner On Front Door Remove/Install Components (1 Of 2)

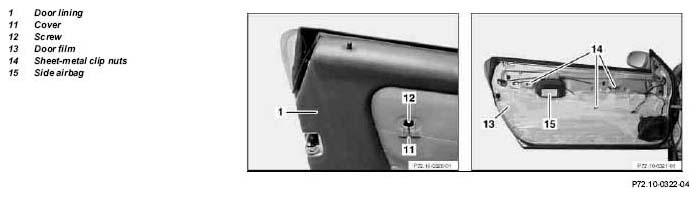

Fig 2: Identifying Door Liner On Front Door Remove/Install Components (2 Of 2)

MODIFICATION NOTES

15.8.96

Version for side airbag at the front added

Work step 1, 7 and 13 incorporated for the first time and figure 2 added

	Removing, installing
1	Open crank window
2	Remove cover (2)	Press out cover from the bottom (arrow) using assembly wedge
			Fig 3
3	Unscrew screws (3)	Installation:  Screw in the shorter screw at the top
4	Unclip cover (9) using assembly wedge		Fig 4
5	Detach cover (6)
6	Detach lock escutcheon (5)
7	Unclip cover (11) and unscrew screw (12)	Only with code 292 (front left and right side airbag)
8	Press door lining (1) off inner door panel at the bottom, front and back using assembly wedge	Move assembly wedge directly to the clips (10)	Fig 3
9	Pry top of the door lining (1) upwards out of the clips at the sealing rail using assembly wedge and at the same time pull away from the inner door panel.		Fig 3
10	Disconnect left front door speaker connector (H4/1x2).
11	Unhook control cable (8) from inner door control
12	Put door lining down on a clean base
13	Check sheet-metal clip nuts (14) on inner door panel	Replace damaged sheet-metal clip nuts
14	Check door film on inner door panel and clips (10) on door lining (1).	Replace damaged door film or clips
15	Install in reverse order

Fig 3: Identifying Assembly Wedge (110 589 03 59 00)

Fig 4: Identifying Long Wedge (115 589 03 59 00)
