Retrofitting roof rack attachment - AN77.50-P-1000G

MODEL 170

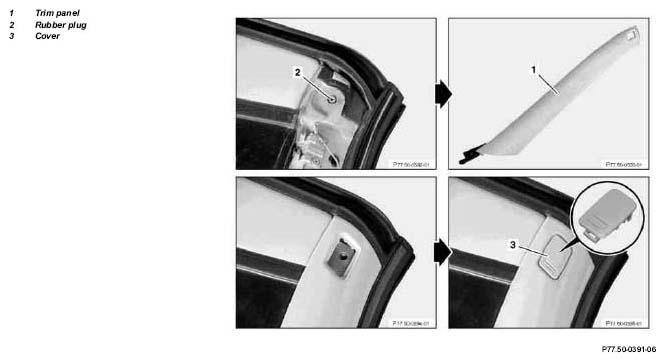

Fig 1: Identifying Trim Panel, Rubber Plug And Cover

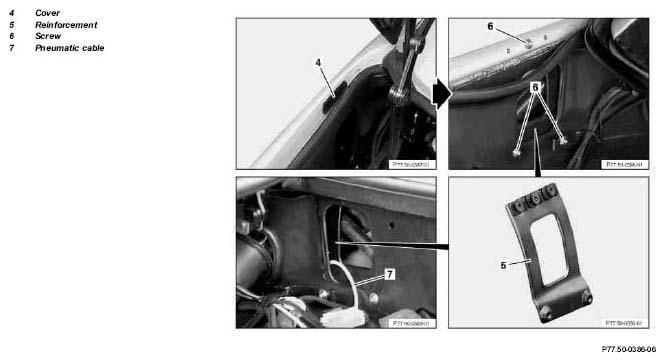

Fig 2: Identifying Reinforcement, Pneumatic Cable And Cover

	Removing
	Paint trim panels (1)
1	Remove trim panel on outside of A-pillar		AR88.80-P-8500G
2	Pull rubber plug (2) out of the thread in the A-pillar
3	Remove trim panel in side of trunk		AR68.30-P-4800G
4	Use plastic wedge to press off cover (4) at fender	Avoid damage to paintwork
	Installing
5	Insert reinforcement (5) through the opening of the side panel, fit on screws (6), align to the attachment holes and tighten screws (6)	Do not jam pneumatic pipe (7) on the right-hand side	*BA77.33-P-1010-01A
			*WH58.30-Z-1029-06A
6	Use existing seal and clips at the trim panels (1)
7	Install in the reverse order	Steps 1, 3
8	Clip cover (3) into the trim panel (1)

Soft top mechanism

Number	Designation		Model 170
BA77.33-P-1010-01A	Screws of reinforcement of roof rack attachment to rear fender	Nm	8

Commercially available tools

Number	Designation
WH58.30-Z-1029-06A	Screwdriver bit, female Torx T30, 70 mm long

Parts order notes

Part no.	Designation	Quantity
170 690 07 87	Left A-pillar trim	1
170 690 08 87	Right A-pillar trim	1
170 698 09 30	Cover in left trim	1
170 698 10 30	Cover in right trim	1
170 630 23 16	Reinforcement in left rear fender	1
170 630 24 16	Reinforcement in right rear fender	1
140 984 28 29	Screw for bracket	6
