Removing and installing paneling on outside of A-pillar - AR88.80-P-8500G

MODEL 170

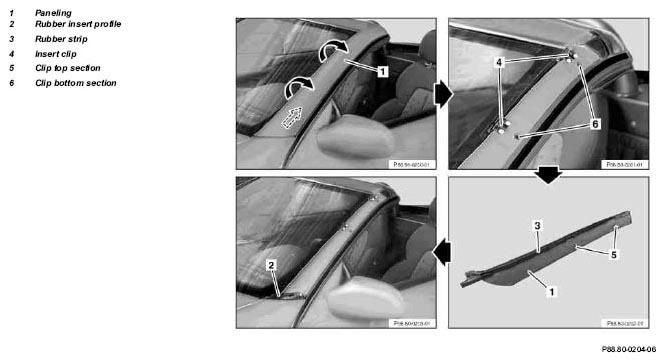

Fig 1: Identifying Paneling On Outside Of A-Pillar Remove/Install Components (1 Of 2)

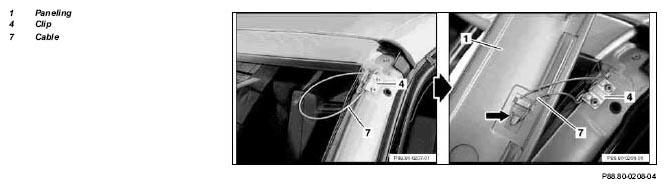

Fig 2: Identifying Paneling On Outside Of A-Pillar Remove/Install Components (2 Of 2)

REVISIONS

5.8.96

Removal and installation of cable (7) added

Steps 3 and 5 added
Figure 2 added

	Removal
1	Open Vario-roof
2	Turn paneling (1) outward in upper area (2 insert clips and clips) and pull upward off of rubber insert profile (2) at fender
3	Unhook cable (7) on paneling (1)
	Installation
4	Check rubber strip (3), insert clips (4) and clips (5 and 6)	When replacing the rubber strip (3) coat retaining profile with rubber lubricant to facilitate installation
5	Hook cable (7) into top clip (4)	During a head-on collision the cable (7) prevents the paneling (1) from falling off
6	Hook cable (7) into paneling (1), slide on rubber profile (2) and press into clips (4) at top and clip (6) on A-pillar
7	Close vario-roof
