Removing and installing front floor covering (right) - AR68.20-P-2070G

MODEL 170

Fig 1: Identifying Right Front Floor Covering Remove/Install Components - Model 170 (1 Of 3)

Fig 2: Identifying Right Front Floor Covering Remove/Install Components - Model 170 (2 Of 3)

Fig 3: Identifying Right Front Floor Covering Remove/Install Components - Model 170 (3 Of 3)

	Removal
1	Remove front seat		AR91.10-P-1000G
2	Remove rear center console		AR68.20-P-2020G
3	Remove cover on center console		AR68.20-P-2350G
4	Remove ashtray housing with stowage compartment in front center console		AR68.20-P-2410G
5	Remove air outlet cover in footwell		AR68.10-P-1530G
6	Fold back front floor covering (5) and remove Styrofoam panel
7	Remove cover below instrument panel (on right)		AR68.10-P-1520G
8	Remove paneling in footwell		AR68.30-P-4010G
9	Unhook ruffled pocket and remove
10	Disconnect connector on switch (S12) for parking brake and expose lead

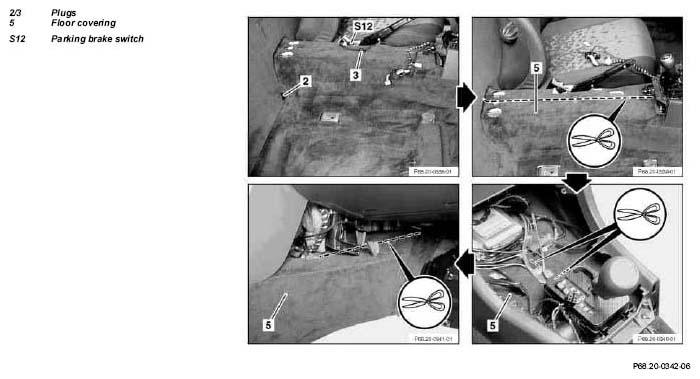

11	Unscrew plugs (2 and 3) and pull off edge protector at rear in lower area
12	Cut through floor covering (5) along dotted line with a sharp knife	Do not damage electrical and pneumatic lines! Cut single-piece floor covering (5) along dotted lines in order to avoid time-consuming removal of the heater or air conditioning.
13	Remove floor covering (5) below center console	Lift at rear and remove from vehicle Lay floor covering (5) down on clean surface
	Installation

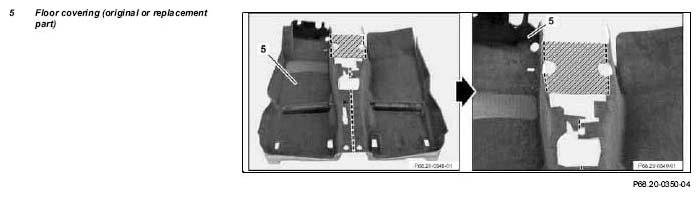

14	Prepare floor covering (5) for installation	Before installing floor covering, clean vehicle passenger compartment in area of floor covering. When replacing the floor covering cut the new floor covering along the dotted line with a sharp knife and remove the section below the heater (shaded area).
15	Install floor covering (5)	Insert cut edge in front area below center console while simultaneously guiding the parking brake lever, kick-down switch, welded pin for the accelerator pedal and electrical leads for the driver's seat through (arrows).

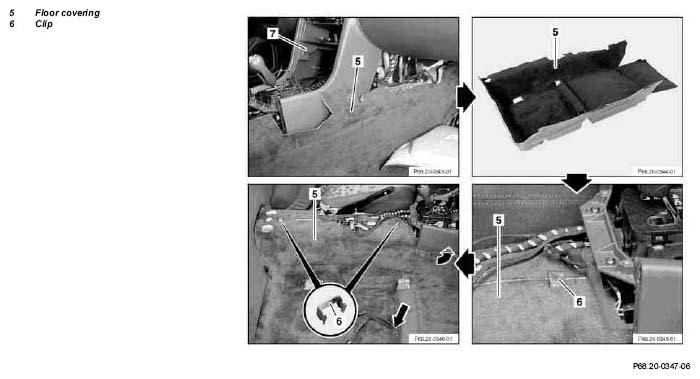

16	Expose lines in area of center console and attach the two halves of the floor covering at the front and rear with clips (6, 2 each) along the cutting line	For this purpose cut slits in both floor covering halves with blade and insert clips (6).
17	Reinstall in opposite order	starting with step 11
