Turn Pneumatic control unit (PSE) 180°; connections pointing down - AR80.20-P-2710G
MODEL 170.### ## up to 280000
| Remove | |||
| Risk of explosion caused by explosive gas. Risk of poisoning and caustic burns caused by swallowing battery electrolyte. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and goggles. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Disconnect ground cable of battery | AR54.10-P-0003A | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 2 | Remove trunk lining on right-hand side | AR68.30-P-4800G | |

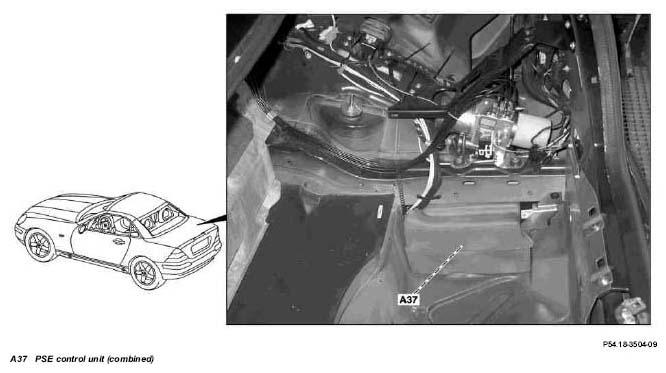

| 3 | Remove pneumatic control unit with combination functions (A37) | AR80.20-P-2700G | |
| Install | |||
| 4 | Install repair wiring harness | AR54.18-P-0900G | |
| 5 | Install pneumatic control unit with combination functions (A37) | AR80.20-P-2700G | |
| 6 | Install paneling in trunk on right | AR68.30-P-4800G | |
| 7 | Perform basic programming | AR00.19-P-0200B | |
| 8 | Read diagnostic trouble code memory and erase | The DTCs stored can come from lines being disconnected during assembly or during testing work as well as from simulation. See ↓ |
|
| Connect STAR DIAGNOSIS, interrogate fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A | ||
| 9 | Start engine | ||
| 10 | Perform function check |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
