Removing and installing pneumatic system equipment control module (A37/2-A37/5) - AR80.20-P-2700G

MODEL 170

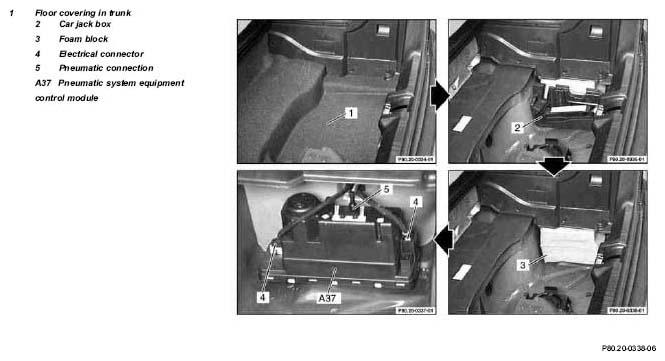

Fig 1: Identifying Pneumatic System Equipment Control Module Remove/Install Components

REVISIONS

18.2.97

Code note added

	Removal, installation
1	Remove floor covering in trunk (1)
2	Remove car jack box (2)
3	Open foam block (3), remove PSE control module (A37)
4	Disconnect electrical connector (4)	On cars with anti-theft alarm (ATA) disconnect 4 plug connectors
5	Disconnect pneumatic connection (5)
6	Check pneumatic system equipment control module for proper electrical function	See Diagnosis Manual, Body
7	Check pneumatic system control module for proper pneumatic function	See Diagnosis Manual, Body
8	Reinstall in opposite order	If the pneumatic system equipment control module is replaced, perform version coding with HHT on vehicles for and and on vehicles as of 06/97
