Removing and installing front bumper - AR88.20-P-2000GA

MODEL 170 as of 1.2.00

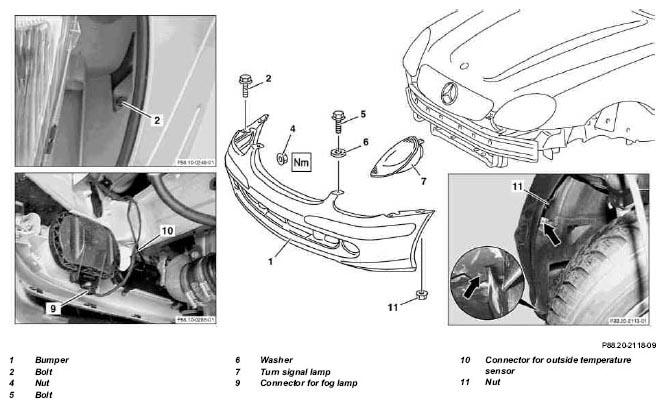

Fig 1: Identifying Front Bumper Remove/Install Components - Model 170 As Of 1.2.00

	Removing, installing
1	Remove left and right turn signal lamps (7)	Press retaining lug on turn signal lamps downwards	AR82.10-P-4725C
2	Unscrew screws (2) on both sides
3	Disconnect connectors (9) for left and right fog lamps	The connectors are accessible through an opening in the wheelhouse cover in the front fender.
4	Unscrew screws (see arrows) on wheelhouse cover
5	Remove engine compartment paneling		AR61.20-P-1105A
6	Disconnect connector (10) for outside temperature sensor
N	Unscrew left and right nuts (4) on cross member		*BA88.20-P-1001-01A
8	Unscrew screw (5) with washer (6) on both sides
9	Unscrew nuts (11) on both sides
10	Remove bumper (1)	To remove pull bumper forward slightly to avoid damaging paint. Bumper is clipped in area of radiator grille.
11	Install in the reverse order

BUMPER

Number	Designation		Model 170
BA88.20-P-1001-01A	Nuts for front bumper on cross member	Nm	10 ± 2
