Removing and installing turn signal lamp - AR82.10-P-4725C

MODEL 170

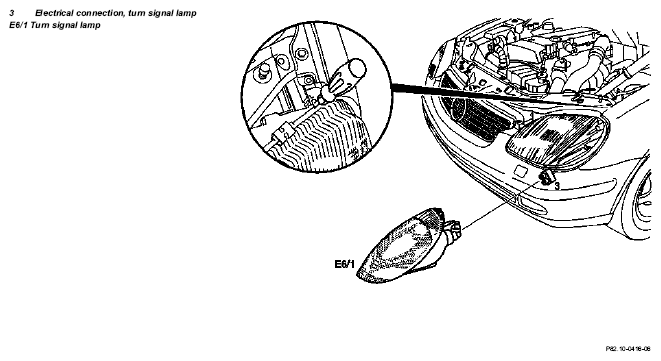

Fig 1: Identifying Turn Signal Lamp Remove/Install Components

Modification notes

16.11.99

Work procedure modified

Stages 1, 2

	Removal, installation
1	Remove turn signal lamp (E6/1)	Loosen lock in hole on end of fender support with screwdriver and press turn signal lamp out toward front.
2	Pull off electrical connection (3) from turn signal lamp (E6/1)
3	Install in opposite order
