Removing, installing |
|
|
| 1 |
Open engine hood |
|
AR88.40-P-1000G |
| 2 |

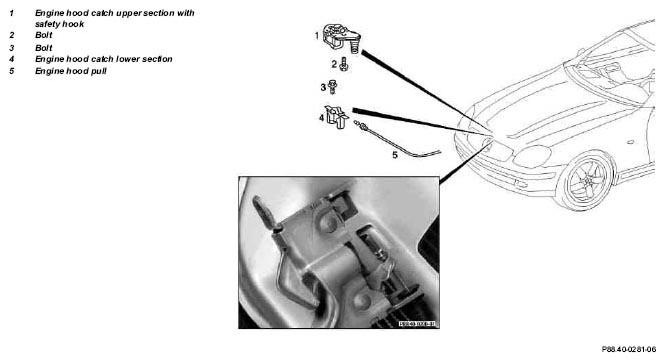

Remove bolts (3) and remove engine hood catch lower section (4) from above |
 |
|
| |
|
 Installation
: Grease engine hood catch lower section with MB sliding paste |
*BR00.45-Z-1004-06A |
| 3 |
Detach engine hood pull (5) from engine hood catch lower section (4) |
Slightly pull engine hood pull |
|
| |
|
Installation
: Note correct routing of engine hood pull cable |
|
| 4 |
Remove engine hood catch upper section (1) |
Mark installation position of engine hood catch upper section on engine hood |
*BA88.40-P-1004-01A |
| |
|
Installation
: Grease engine hood catch upper section with MB sliding paste |
*BR00.45-Z-1004-06A |
| 5.1 |
Align cutout in hood inner panel |
Only vehicles up to chassis end number 005707
When replacing engine hood catch upper section (1) if engine hood is not replaced. |
AR88.40-P-3200-01G |
| |
|
|
*WE58.40-Z-1004-03A |
 |
Engine hood catch upper section modified |
as of chassis end number 005708 |
BT88.40-P-3200-01G |
| 6.1 |
Renew cavity preservation in area of engine hood catch upper section |
Only vehicles up to chassis end number 005707 |
AR97.20-P-1500G |
| 7 |
Install in the reverse order |
|
|
| 8 |
Carry out function check |
|
|
| 9 |
Check function of safety hook |
Do this by closing engine hood, then release and check catch on radiator cross member |
|
| 10 |
Check engine hood alignment |
if necessary ↓ |
|
| |
|
Adjust engine hood |
AR88.40-P-3020G |
