Matching cutout in hood inner panel - AR88.40-P-3200-01G

WORKSHOP EQUIPMENT

WE58.40-Z-1004-03A Body saw (electric/pneumatic)
  1. Carefully cover engine compartment, windshield and fenders.

    NOTES Thoroughly remove chippings from cavities produced during repairs.

  2. Mark cutout according to drawing.

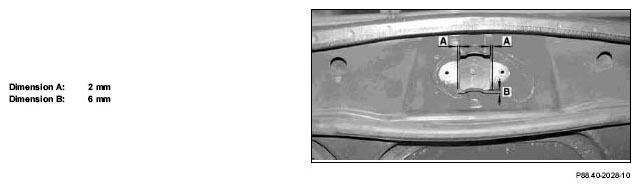

    Fig 1: Identifying Hood Inner Panel Cutout Dimensions
    G04744561
  3. Saw out cutout (arrow)
  4. Deburr cut edges using a file
  5. Carry out corrosion prevention measures

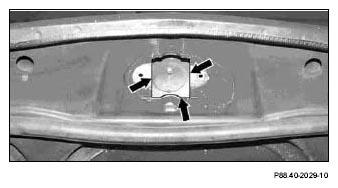

    Fig 2: Identifying Cutout Sawing Area
    G04744562
  6. Mount engine hood catch upper section (1) in rearmost position

    IMPORTANT Actuating lever (2) must not touch front fold of engine hood. If necessary leave out rubber beading (3) in this area.

  7. Check function and adjustment

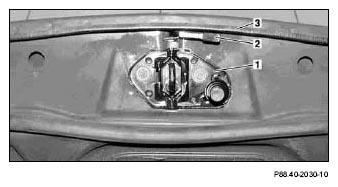

    Fig 3: Identifying Engine Hood Catch Upper Section, Actuating Lever & Rubber Beading
    G04744563
