Removing and installing trunk lid actuator - AR80.20-P-2400G

MODEL 170

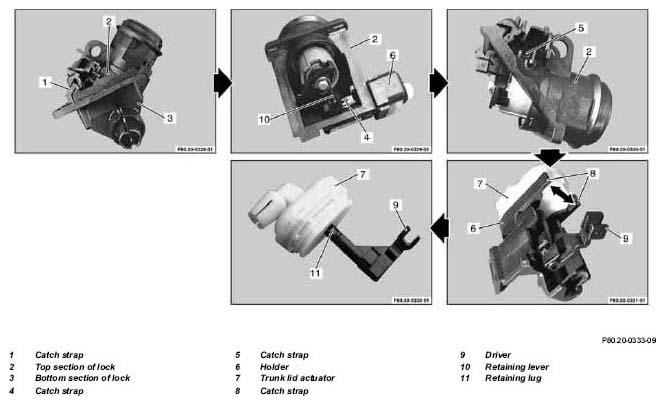

Fig 1: Identifying Trunk Lid Actuator Remove/Install Components

	Removal, installation
1	Remove pushbutton lock		AR88.50-P-5020G
2	Remove trunk lid lock switch (S88/2)	Lock switch only ,	AR80.20-P-2550G
3	Unhook catch strap (1)
4	Pull top section of lock (2) off of bottom section (3)
5	Unhook catch straps (4, 5)
6	Unhook holder (6) with trunk lid actuator (7) by pressing the two catch straps (8) in the direction of the arrow and pull off of lock top section (2)	Installation:  when installing ensure that the driver (9) surrounds the retaining lever (10) and that the catch lugs (4, 5, 8) engage
7	Pull trunk lid actuator (7) off of holder (6)
8	Lift retaining lug (11) on trunk lid actuator (7) with pointed tool. Pull off driver (9)
9	Check pneumatic function of trunk lid actuator	See Diagnosis Manual, Body
10	Reinstall in opposite order
