Removing and installing lock switch in trunk lid - AR80.20-P-2550G

MODEL 170 with CODE (491) USA version with CODE (498) Japanese version

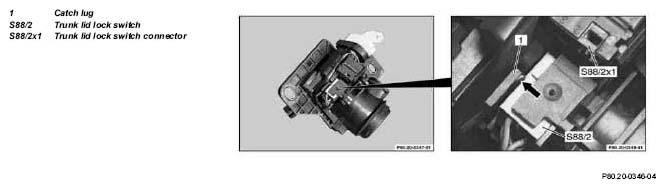

Fig 1: Identifying Lock Switch In Trunk Lid Remove/Install Components

	Removal, installation
1	Remove trunk lid lock		AR88.50-P-5020G
		Installation:  adjust trunk lid lock	AR88.50-P-5020G
		Installation:  adjust trunk lid	AR88.50-P-5200G
2	Unclip lock switch (S88/2x1) as well as lead from lock element
3	Press catch lug (1) in direction of arrow and pull lock switch (S88/2) out of lock element
4	Reinstall in opposite order
