Retrofitting ultrasonic backup assist - AZ54.65-P-0001G: Notes

MODEL 170.4

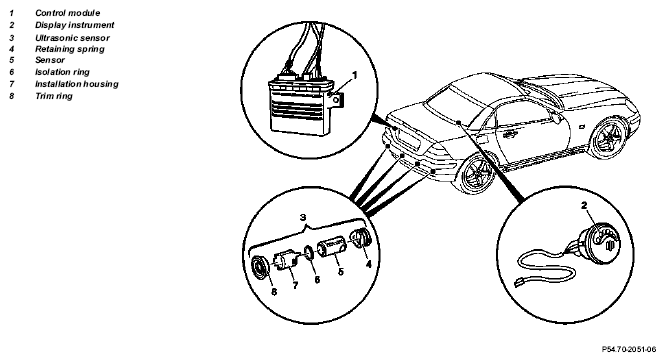

Fig 1: Identifying Ultrasonic Backup Assist Components

	Removing
1	Disconnect ground cable from battery
			AR54.10-P-0003A
2	Remove rear bumper
			AR88.20-P-2200G
3	Remove impact member from bumper
4	Remove cover of rear panel trim
			AR68.30-P-4750G
5	Remove trim in side of trunk	Left trim
			AR68.30-P-4800G
	Installing
6	Paint sensors and trim rings		AZ54.65-P-0001-01A
7	Make holes in bumper		AZ54.65-P-0001-02F
8	Install and connect sensors		AZ54.65-P-0001-03A
9	Insert impact member in bumper
10	Install rear bumper	Route connection cable of sensor wiring harness through the selected or prepared duct into the rear area of the trunk. Seal duct with a rubber grommet.
			AR88.20-P-2200G
11	Install control module		AZ54.65-P-0001-04G
12	Install display instrument		AZ54.65-P-0001-05H
13	Route and connect wiring harness		AZ54.65-P-0001-06A
14	Install cover of rear panel trim
			AR68.30-P-4750G
15	Install trim in side of trunk
			AR68.30-P-4800G
16	Connect battery ground cable
			AR54.10-P-0003A
17	Test ultrasonic backup assist		AZ54.65-P-0001-07A
18	Issue manufacturer's safety/operating instructions when handing over the vehicle to the customer

Parts ordering notes

Part no.	Designation	Quantity
B6 782 3401	Universal basic kit	1
B6 782 3404	Vehicle kit R 170 and W 163	1
