Remove and install rear wall paneling - AR68.30-P-4750G

MODEL 170

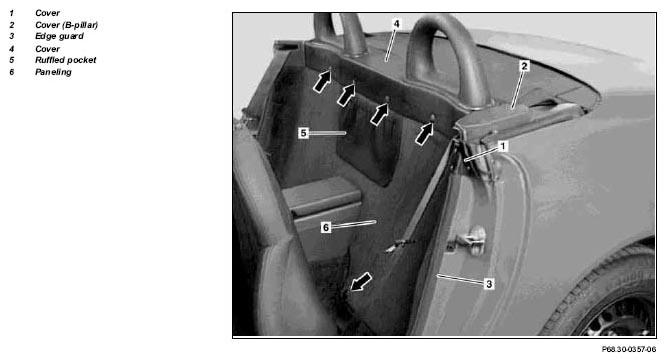

Fig 1: Identifying Rear Wall Paneling Remove/Install Components (1 Of 2)

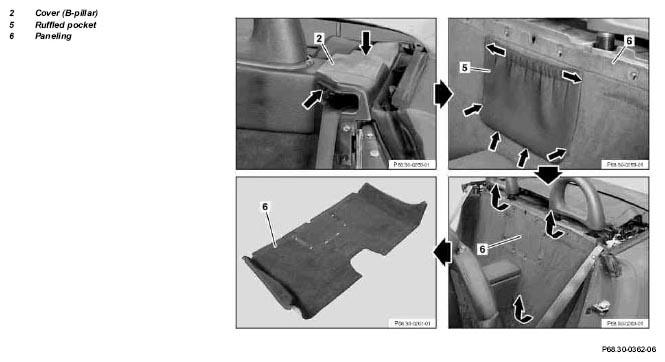

Fig 2: Identifying Rear Wall Paneling Remove/Install Components (2 Of 2)

	Remove/install
1	Open Vario roof
2	Remove left and right door sill molding (4 clips)
3	Remove left and right cover (1) (3 screws)
4	Remove left and right cover (2) (3 screws, arrows)	Do not unscrew belt end fitting
5	Remove left and right edge guard (3)
6	Unscrew plugs (6 each, arrows)
7	Unscrew mount for draft stop	At side of rollover bar
8	Remove cover (4) upward over rollover bar
9	Unhook ruffled pocket (5) from rear wall (arrows) and remove
10	Lift paneling (6) over welding bolt, unclip in area of door edge guard (2 clips) and pull out upward
11	Install in the reverse order
