Retrofit antitheft alarm system (ATA) - AN80.50-P-0001N

MODEL 215 up to 31.8.02

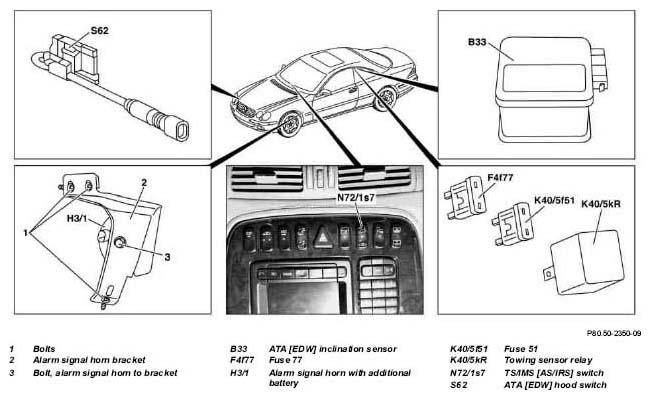

Fig 1: Identifying Retrofit Antitheft Alarm System (ATA) Components (1 Of 6) - Model 215 Up To 31.8.02
G04850206

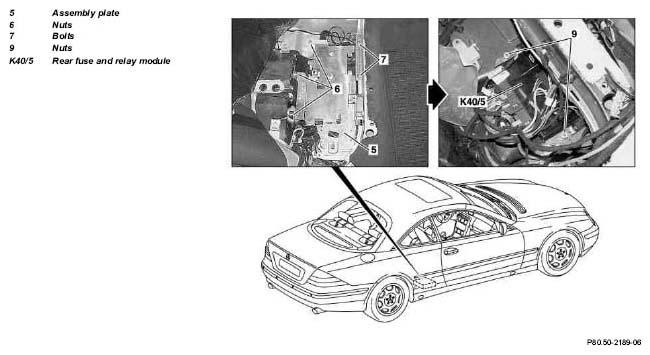

Fig 2: Identifying Retrofit Antitheft Alarm System (ATA) Components (2 Of 6) - Model 215 Up To 31.8.02
G04850207

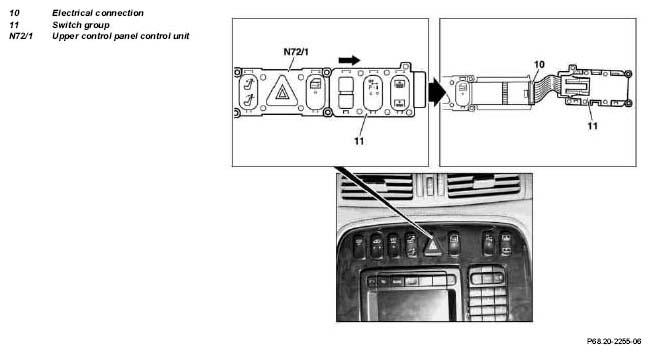

Fig 3: Tightening Identifying Retrofit Antitheft Alarm System (ATA) Components (3 Of 6) - Model 215 Up To 31.8.02
G04850208

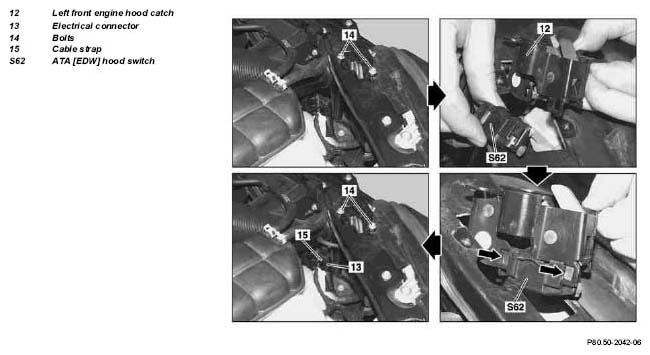

Fig 4: Identifying Retrofit Antitheft Alarm System (ATA) Components (4 Of 6) - Model 215 Up To 31.8.02
G04850209

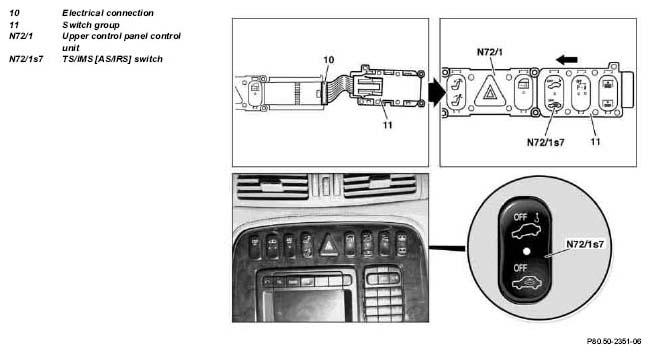

Fig 5: Identifying Retrofit Antitheft Alarm System (ATA) Components (5 Of 6) - Model 215 Up To 31.8.02
G04850210

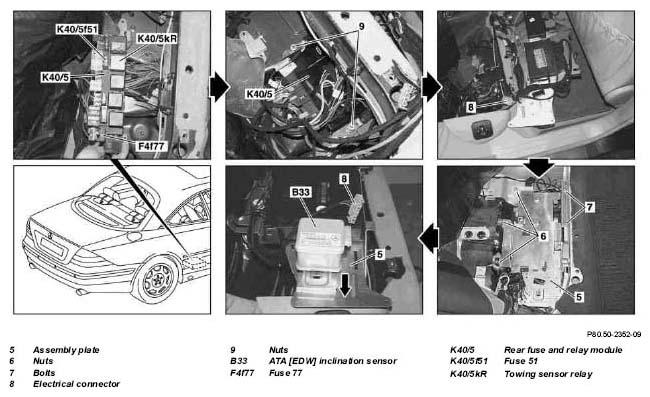

Fig 6: Identifying Retrofit Antitheft Alarm System (ATA) Components (6 Of 6) - Model 215 Up To 31.8.02
G04850211
REMOVING Removing
1 Connect no load current retention unit   *WH58.30-Z-1012-09A
2 Disconnect battery ground cable
REFER TO TESTING & REPAIR     AR54.10-P-0003I
3 Remove rear seat cushion
REFER TO TESTING & REPAIR     AR91.12-P-1020N
4 Unscrew bolts (7) and nuts (6), remove assembly plate (5) from vehicle floor and fold down toward front. IMPORTANT Do not disconnect electrical wiring plugs.
5 Unscrew nuts (9) and remove rear fuse and relay module (K40/5) from vehicle floor IMPORTANT Do not disconnect electrical wiring plugs.
6 Remove upper control panel control unit.
REFER TO TESTING & REPAIR     AR54.21-P-1262N
    IMPORTANT If the cutout for TS/IMS switch (N72/1s7) is not present, send only center console cover to manufacturer: ↓
REFER TO FORMS   Order for boring hole pattern, form sheet. OF68.00-P-3000-01A
7 Remove switch group (11) in direction of arrow and disconnect electrical connector (10). IMPORTANT Switch group is a part eliminated
8 Remove front floor covering IMPORTANT Left.
REFER TO TESTING & REPAIR     AR68.20-P-2050M
9 Remove finder liner in front fender IMPORTANT Left.
REFER TO TESTING & REPAIR     AR88.10-P-1300M
10 Unscrew bolts (14) from left front engine hood catch (12).
INSTALLING Install
11 Clip ATA engine hood switch (S62) into left front engine hood catch (12). IMPORTANT ATA engine hood switch (S62) should arrest correctly (see arrows).
12 Connect present electrical connector (13) to ATA engine hood switch (S62). IMPORTANT Fasten connector with cable straps (15).
13 Screw bolts (14) into left front engine hood catch (12). TORQUE SPECIFICATION Bolt to engine hood catch. *BA88.40-P-1004-01D
14 Retrofit alarm siren IMPORTANT Install alarm signal horn with additional battery (H3/1) together with alarm signal horn bracket (2). AN80.50-P-0001-02M
15 Clip new switch group (11) with TS/IMS switch (N72/1s7) onto upper control panel (N72/1) in direction of arrow and connect to electrical connector (10).
16 Install upper control panel control module (N72/1)
REFER TO TESTING & REPAIR     AR54.21-P-1262N
17 Insert tow-away protection relay (K40/5kR) and fuse 51 (K40/5f51), fuse 77 (F4f77)
REFER TO BASIC KNOWLEDGE Fuse assignment, as-built configuration   GF54.15-P-1256I
REFER TO BASIC KNOWLEDGE Relay assignment, as-built configuration   GF54.15-P-1257I
18 Install rear fuse and relay module (K40/5) and fasten wit nuts (9).
19 Loosen line tieout with electrical coupling (8) from wiring harness.
20 Install assembly plate (5) and fasten with bolts (7) and nuts (6).
21 Push ATA inclination sensor (B33) onto assembly plate (5) in direction of arrow and connect electrical coupling (8) to ATA inclination sensor (B33). IMPORTANT Note direction of installation.
22 Retrofitting interior protection with CODE (551a) Anti-theft alarm system (ATA). AN80.50-P-0100N
23 Install remaining parts onto vehicle
  Checking
24 Control unit adaptation for ATA system with STAR diagnosis. IMPORTANT Perform following control unit adaptations:$
  • SAM VL-EDW.
  • EZS-ASS.

25 Check ATA system for proper function
26 When modifying the package, subsequently enter code or designation of corresponding special equipment on vehicle data card and FDOK IMPORTANT Anti-theft alarm (ATA) code 551a.
TORQUE SPECIFICATION ENGINE HOOD

Number Designation Model 215
BA88.40-P-1004-01D Bolt to engine hood catch Nm 8
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1012-09A Quiescent current retention unit
PARTS ORDERING NOTES

Part no. Designation Quantity
kg99 Fender bolt 3
kg54 Relays 1
kg54 Fuse 5A 1
kg54 Fuse 40A 1
kg54 Cable tie 1
kg82 Anti-towing inclination sensor 1
kg82 Hood contact 1
kg82 Siren 1
kg82 Bracket (for siren) 1
kg01 Bolt (siren to bracket) 1
kg82 TS/IMS switch according to equipment variant and color 1
group 68 Wooden trim strip according to equipment variant and requirements. 1
group 68 Center console cover as required 1
