Retrofitting alarm siren - AN80.50-P-0001-02M

Models 215, 220

  1. Position holder of alarm signal siren with additional battery in left wheelhousing on the longitudinal member, center and transfer hole pattern of holder.
  2. Drill the marked holes (6) with Ø 6 mm.

    IMPORTANT Treat the newly drilled holes with corrosion protection.

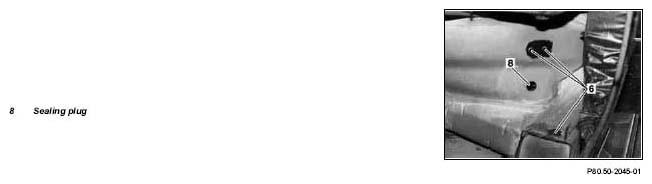

    Fig 1: Identifying Sealing Plug
    G04850196
  3. Clip open cable duct (5) at the front left and take out existing cable (4).
  4. Press out sealing plug (8)

    IMPORTANT Sealing plug (8) is no longer used.

    Fig 2: Identifying Cable Duct, Sealing Plug And Existing Cable
    G04850197
  5. Route cable (4) through existing hole and seal with rubber grommet (7).
    Fig 3: Identifying Cable And Rubber Grommet
    G04850198
  6. Bolt alarm signal siren with additional battery (H3/1) tight to holder (2) with bolt (3).
  7. Attach holder (2) in wheelhousing with fender screws (1).
  8. Fit together electrical connection (4) to alarm signal siren with additional battery (H3/1).
    Fig 4: Identifying Fender Screws, Bolt, Electrical Connection And Battery
    G04850199
