Retrofitting trailer coupling - AN31.10-P-8080FFB

MODEL 210.006 /007 /016 /026 /035 /045 /048 /061 /062 /063 /065 /070 /081 /082 /083 1A as of 962231 as of 1.6.99

as of 6.99 with code 800, vehicles with integral turn signal indicators in the outside mirrors

Shown on detachable ball neck

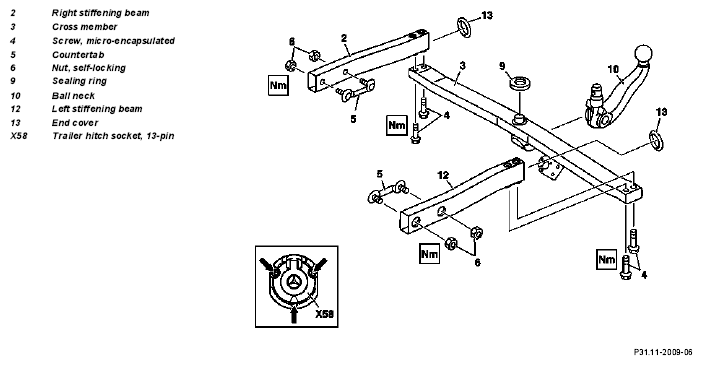

Fig 1: Retrofitting Trailer Coupling Components Shown On Detachable Ball Neck

	Remove/install
	Notes regarding installation of trailer hitch	Model 210	AH31.10-P-1000-02FF
1	Remove rear seat and rear seat backrest	Remove rear seat only.
			AR91.12-P-1700F
2	Remove left backrest side trim
3	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
4	Disconnect ground cable of battery	To protect against unintended contact, insulate the disconnected ground line.
			AR54.10-P-0003A
5	Remove rear fuse box
			AR54.15-P-1320A
6	Remove left/right front door sill molding and rear left/right door sill molding	Open the cable duct.
7	Remove the paneling on the left/right B-pillar	Remove only longitudinal member paneling.
			AR68.30-P-4700F
8	Remove cover below instrument panel (left)
			AR68.10-P-1500F
9	Remove paneling at the bottom of the A-pillar on the left and right	Open the cable duct.
10	Remove right front floor covering
			AR68.20-P-2070F
11.1	Remove right front footrest	Only on vehicles with Parktronic system code 220.
12	Take out cover of trunk floor
13	Remove spare wheel and jack
14	Remove cargo edge cover
15	Remove side trim in left and right sides of trunk
16	Remove rear bumper
17	Remove complete exhaust system	Only remove the rear muffler as from the threaded connection
		Engine 111.942 in model 210.035, Engine 111.970 in model 210.037, Engine 111.947 in model 210.045.	AR49.10-P-7000B
		Engine 112.921 in MODEL 210.063/081, Engine 112.941 in MODELS 210.065/082, Engine 113.940 in model 210.070, Engine 113.980 in model 210.074.	AR49.10-P-7000A
		Engine 611.961 in MODELS 210.006/007, Engine 612.961 in model 210.016, Engine 613.961 in model 210.026.	AR49.10-P-7000HB
18	Remove shroud above rear muffler
	Install
19	Retrofit detachable mechanical body components		AN31.11-P-8080-05FFA
		Bolt, crossmember to vehicle	*BA31.10-P-1001-01B
		Nut to counter tab	*BA31.10-P-1002-01B
20.1	Print document "Trailer hitch, confirmation"	Print out the document "Trailer hitch, certification" and submit on final inspection of the installation For do-it-yourself installers, the detailed installation instructions must be printed out and given to the customer. These must be submitted by the customer on final inspection.
		* For Germany only	OF31.10-P-1000-01G
21	Connect wiring harness		AN31.19-P-8080-03FFB
22	Reassemble vehicle
23	Perform function test of light signals at the trailer hitch socket		AN31.19-P-8100-06F
24	Enter special equipment on vehicle data card and in vehicle data card online	Code 550 trailer hitch.

Trailer coupling
