Retrofitting trailer coupling - AN31.10-P-8080FFA

MODEL 210.003 /004 1#,210.006 /007 1A up to 962230,210.010 /015 1#,210.016 1A up to 962230,210.017 /020 /025 1#,210.026 /035 1A up to 962230,210.037 1#,210.045 1A up to 962230,210.053 /055 1#,210.061 /062 /063 /065 /070 1A up to 962230,210.072 1#,210.081 /082 /083 1A up to 962230

up to 06.99 with code 809, vehicles without integral turn signal indicators in the outside mirrors

Shown on detachable ball neck

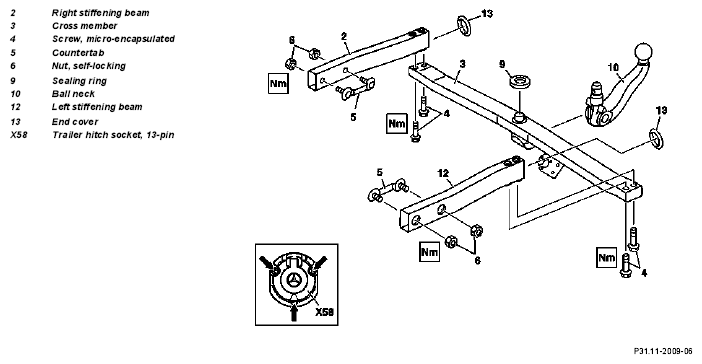

Fig 1: Retrofitting Trailer Coupling Components Shown On Detachable Ball Neck

	Remove/install
	Notes regarding installation of trailer hitch	Model 210.	AH31.10-P-1000-02FF
1	Remove rear seat and rear seat backrest	Remove rear seat only.
			AR91.12-P-1700F
2	Remove left backrest side trim
3	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
4	Disconnect ground cable of battery	To protect against unintended contact, insulate the disconnected ground line
			AR54.10-P-0003A
5	Remove rear fuse box
			AR54.15-P-1320A
6	Remove left front and left rear door sill moldings	Open the cable duct.
7	Remove trim on left B-pillar	Remove only longitudinal member paneling.
			AR68.30-P-4700F
8	Remove cover below instrument panel (left)
			AR68.10-P-1500F
9	Remove A-pillar paneling at bottom left	Open the cable duct.
10	Take out cover of trunk floor
11	Remove spare wheel and jack
12	Remove cargo edge cover
13	Remove side trim in left and right sides of trunk
14	Remove rear bumper
		up to 31.5.99.	AR88.20-P-2200F
15	Remove complete exhaust system	Only remove the rear muffler as from the threaded connection
		Engine 112.921 in MODEL 210.063/081, Engine 112.941 in MODELS 210.065/082, Engine 113.940 in model 210.070.	AR49.10-P-7000A
		Engine 604.912 in model 210.004, Engine 605.912 in model 210.010, Engine 606.912 in model 210.020, Engine 111.942 in model 210.035, Engine 111.970 in model 210.037, Engine 111.947 in model 210.045, Engine 104.945 in model 210.053, ENGINE 104.995 in MODEL 210.055 with CODE (957a) AMG engineering package.	AR49.10-P-7000B
		Engine 602.982 in model 210.017, Engine 606.962 in model 210.025.	AR49.10-P-7000C
		Engines 119.985, ENGINE 119 in MODEL 210.072 with CODE (957a) AMG engineering package E 50 AMG.	AR49.10-P-7000EA
		Engine 611.961 in MODELS 210.006/007, Engine 612.961 in model 210.016, Engine 613.961 in model 210.026.	AR49.10-P-7000HB
16	Remove shroud above rear muffler
	Install
17	Retrofit detachable mechanical body components		AN31.11-P-8080-05FFA
		Bolt, crossmember to vehicle	*BA31.10-P-1001-01B
		Nut to countertab	*BA31.10-P-1002-01B
18.1	Print document "Trailer hitch, confirmation"	The "Trailer hitch, confirmation" document must be printed out and presented when handing over attachments. For do-it-yourself installers, the detailed installation instructions must be printed out and given to the customer. These must be submitted by the customer on final inspection.
		* For Germany only	OF31.10-P-1000-01G
19	Connect wiring harness		AN31.19-P-8080-03FFA
20	Reassemble vehicle
21	Perform function test of light signals at the trailer hitch socket.		AN31.19-P-8100-06F
22	Enter special equipment on vehicle data card and in vehicle data card online	Code 550 trailer hitch.

Trailer coupling
