Retrofitting portable CTEL - AN82.70-P-0002C
MODEL 210.2 as of 1.7.98 up to 30.6.99 except CODE (278) Complete telephone preinstallation without portable with CODE (750a) MB radio Audio 30 RDS except CODE (347) TELE AID emergency call system (D2B) except CODE (351) Auto pilot system (APS) except CODE (819) 6-disk CD changer in trunk except CODE (273) Provision for D network mobile telephone in conjunction with D2B optical wave guide
MODEL 210.2 as of 1.7.99 up to 30.6.00 except CODE (278) Complete telephone preinstallation without portable except CODE (347) TELE AID emergency call system (D2B) except CODE (351) Auto pilot system (APS) except CODE (819) 6-disk CD changer in trunk in conjunction with D2B optical wave guide and COMAND or radio of Audio series
| Notes on telephone retrofitting | Models 129, 168, 170, 208, 210 | AH82.70-P-0001-04A | |
| Notes on fiber optic cable | Model 129, 168, 170, 202, 208, 210, 220 | AH82.70-P-0001-02A | |
| Removing | |||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove left and right driver's seat | ||
| 3 | Remove radio | ||
| 4 | Lift front left and right floor covering | ||
| AR68.20-P-2050F | |||
| 5 | Open left and right cable ducts | ||
| 6.1 | Remove center console | ||
| 6.2 | Remove center console cover | ||
| AR68.20-P-2350F | |||
| 7 | Remove A-pillar paneling at bottom | ||
| 8 | Fold away rear seat | ||
| 9 | Remove luggage compartment trim on right | ||
| 10 | Open front fuse and relay box | ||
| 11 | Open rear compartment fuse box | ||
| 12 | Remove A-pillar paneling at top | ||
| 13 | Remove overhead panel | ||
| 14 | Detach front and rear roof lining | ||
| Install | |||
| 15 | Retrofit fiber optic cable wiring harness | AN82.70-P-0002-01D | |
| 16 | Cover fiber optic cable | ||
| AR82.95-P-0005-01A | |||
| 17 | Retrofit telephone cable harness | AN82.70-P-0002-03F | |
| 18 | Install hands-free microphone | ||
| AR82.70-P-8969C | |||
| 19 | Retrofit roof antenna | AN82.70-P-8951-06B | |

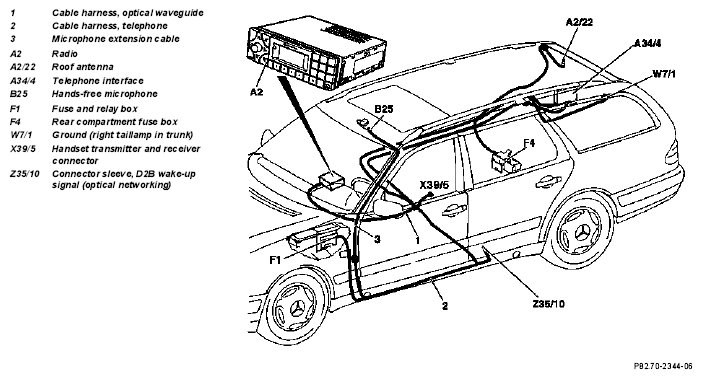

| Figure | |||
| Figure | |||
| Part orders differ according to fitting location of mobile phone. Please agree fitting location with customer. | |||
| 20.1 | Install mobile phone bracket in armrest | ||
| AR82.70-P-8918C | |||
| 20.2 | Install bracket for mobile phone (telephone) on center console | ||
| AR82.70-P-8918F | |||
| 21 | Install telephone interface | ||
| AR82.70-P-7379J | |||
| 22 | Reassemble vehicle, 14-1 | ||
| 23 | Carry out start-up and function test | *WH58.30-Z-1036-13A |
Commercially available tools
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1036-13A | Handheld tester (HHT) | 651 100 01 99 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| Group 82 (see EPC) | TS mobile telephone (Nokia 3110) | 1 |
| Group 82 (see EPC) | Control module bracket (order in accordance with vehicle equipment) | 1 |
| Group 82 (see EPC) | Control module | 1 |
| Group 82 (see EPC) | Cable harness, optical wave guide | 1 |
| Group 82 (see EPC) | Hands-free microphone (order in accordance with vehicle equipment) | 1 |
| Group 82 (see EPC) | Roof antenna | 1 |
| Group 82 (see EPC) | Cap | 1 |
| Group 82 (see EPC) | Cable harness, telephone | 1 |
| Group 82 (see EPC) | Microphone cable | 1 |
| For additional installation in armrest (Nokia 3110) | ||
| Group 82 (see EPC) | Mount | 1 |
| Group 82 (see EPC) | Plate | 1 |
| Group 82 (see EPC) | Cable | 1 |
| For additional installation in center console (Nokia 3110) | ||
| see EPC | Mobile phone console | 1 |
| Group 82 (see EPC) | Mount | 1 |
| Group 82 (see EPC) | Plate | 1 |
| Group 82 (see EPC) | Screw (console mount) | 1 |
