Retrofitting fiber optic cable wiring harness - AN82.70-P-0002-01D

Model 210.2 as of 1.7.98

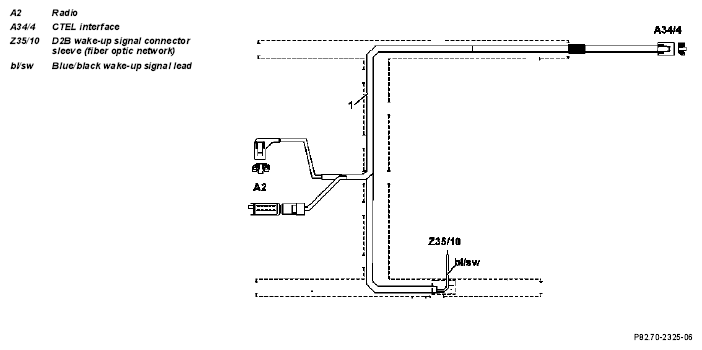

1. Prepare fiber optic cable wiring harness (1) as shown in figure.
   Fig 1: Fiber Optic Cable Wiring Harness Diagram

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

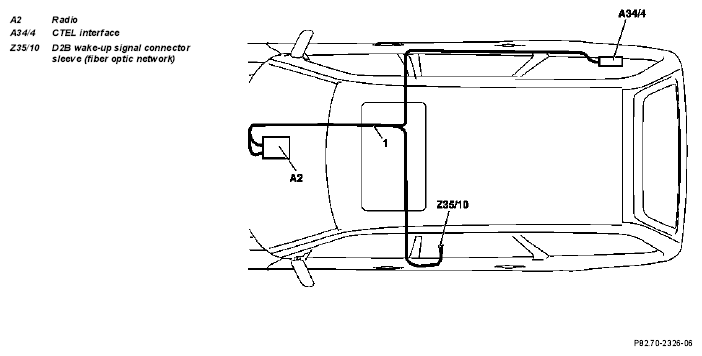

2. Route wiring harness (1) along existing wires in vehicle as shown in figure.
   Fig 2: Identifying Fiber Optic Cable Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

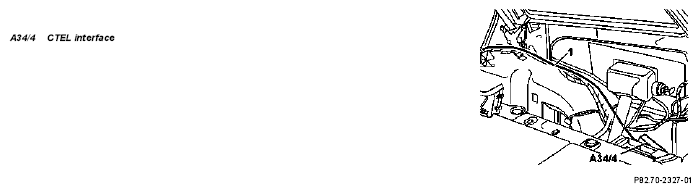

3. Route fiber optic cable (1) wiring harness in load compartment along existing leads as shown in figure.
   Fig 3: Identifying Fiber Optic Cable

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Route tie-out to radio (A2) in wiring duct below driver's seat as shown in figure and fasten with felt.
   Fig 4: Identifying Fiber Optic Cable Wiring Harness Components

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

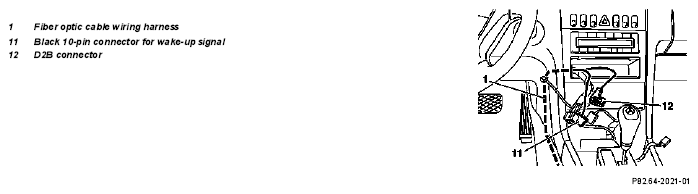

5. Route tie-out to radio in radio shaft.
   Fig 5: Identifying Fiber Optic Cable Wiring Harness And D2B Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

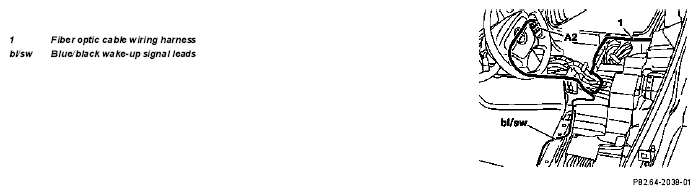

6. Insert blue/black (bl/sw) lead from wiring harness (1) as wake-up signal connector sleeve (Z35/10) in wiring duct on left B-pillar (is later soldered to telephone wiring harness).
   Fig 6: Identifying Blue/Black (bl/sw) Lead

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
