Retrofitting telephone wiring harness - AN82.70-P-0002-03F

Model 210.2

1. Prepare telephone wiring harness (2) as shown in figure.

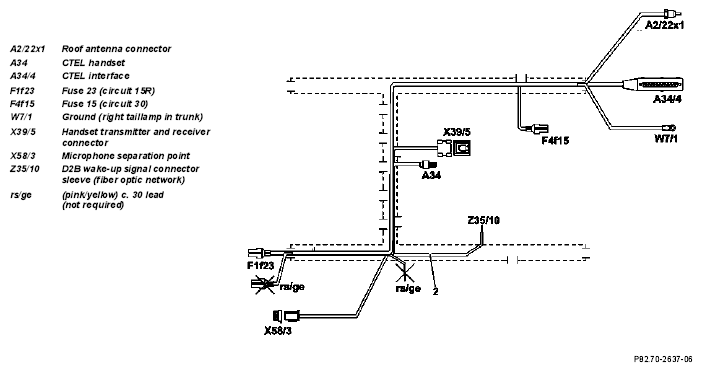

   Connection schematic for telephone

   Fig 1: Telephone Wiring Harness Diagram

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Prepare wiring harness (2) along existing leads in vehicle as shown in figure.

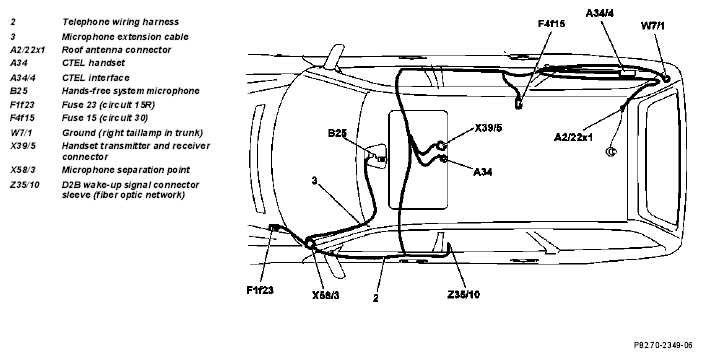

   Fig 2: Identifying Telephone Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

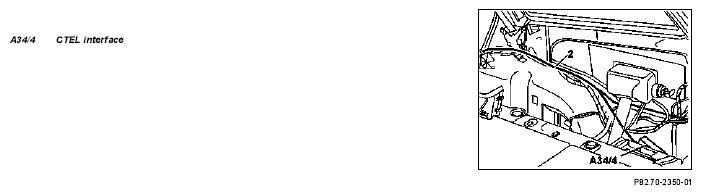

3. Route telephone wiring harness (2) in right load compartment along existing leads as shown in figure.
   Fig 3: Identifying CTEL Interface

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Connect brown lead from wiring harness (2) to ground (right taillamp in trunk) (W7/1).
   Fig 4: Identifying Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Route tie-out to rear fuse box (F4).
6. Connect red/pink (rt/rs) lead circuit 30 to fuse 15.
   Fig 5: Connecting Red/Pink (rt/rs) Lead Circuit 30 To Fuse

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

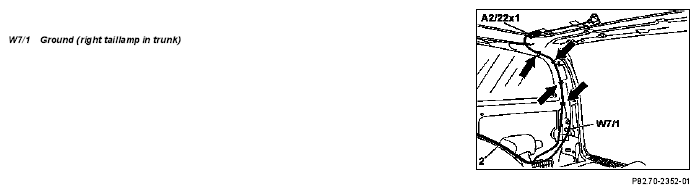

7. Route wiring harness tie-out (2) to roof antenna connector (A2/22x1) on right D-pillar and fasten with adhesive felt (arrows).
   Fig 6: Identifying Ground (Right Taillamp In Trunk)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
8. Route wiring harness tie-outs (2) to center console in wiring duct below seat as shown in figure.

   When installing the mobile telephone holder in the armrest the tie-outs for telephone handset (A34) and handset transmitter and receiver connector (X39/5) remain in the lower area of the center console.

   When installing the mobile telephone holder on the right side of the center console it is necessary to route the two tie-outs into the radio shaft. Route tie-outs to the right below the built-in console depending on the attachment console used.

   Fig 7: Identifying Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

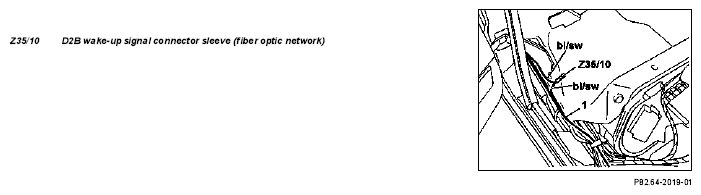

9. Solder blue/black (bl/sw) lead from wiring harness in wiring duct on left B-pillar to blue/black (bl/sw) lead from fiber optic cable wiring harness (1) with solder connector.
   Fig 8: Identifying D2B Wake-Up Signal Connector Sleeve (Fiber Optic Network)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
10. Route tie-out from wiring harness (2) to microphone separation point (X58/3) in area of left A-pillar.
11. Connect microphone extension cable (3) and route to overhead control panel along A-pillar.

    Tie back excessive lengths in left wiring duct.

    Fig 9: Identifying Microphone Extension Cable

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
12. If required lengthen black/pink (sw/rs) lead approx. 1 m, install with terminal and route to fuse and relay box (F1). Connect black/pink (sw/rs) lead to fuse 23 (circuit 15R).
