Retrofitting Traffic Pro navigation system - AZ82.61-P-0002E

MODEL 210 up to 30.6.99 except CODE (316) MB GSM cellular telephone (D2B) except CODE (317) GSM portable cellular telephone (D2B) except CODE (347) TELE AID emergency call system (D2B) except CODE (810) Sound system except CODE (819) 6-disk CD changer

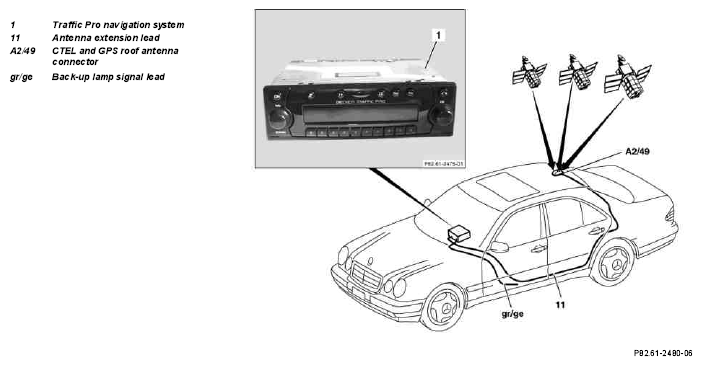

System display model 210 sedan with roof antenna for CTEL and GPS

Fig 1: Identifying Traffic Pro Navigation System Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Notes on Traffic Pro navigation system	Models 129, 140, 163, 168, 170, 202, 208, 210	AH82.61-P-0002-01A
	Removal
1	Disconnect ground cable of battery
			AR54.10-P-0003A
2	Remove radio
3	Lift floor covering on driver's side
			AR68.20-P-2050F
4	Open left wiring duct
5	Remove rear seat bench
		Model 210.0	AR91.12-P-1700F
6.1	Remove paneling on left C-pillar
		Model 210.0 up to end no. 111290	AR68.30-P-4490F
6.2	Remove luggage compartment trim on left	Model 210 T-sedan
7.1	Detach headliner at rear	Model 210 sedan
7.2	Remove rear headliner	Model 210 T-sedan
	Install
8	Retrofit Traffic Pro wiring harness		AZ82.61-P-0002-01E
9	Retrofit global positioning system (GPS) antenna on roof	The antenna version should be coordinated with the customer.
		For model 210.0	AN82.61-P-7474-04V
		For model 210.2	AN82.61-P-7474-04W
10	Reassemble vehicle, 8-1
11	Enable radio code	See operating instructions.
12	Start up Auto-Pilot-System	See installation instructions from Becker company
