Retrofitting Traffic Pro wiring harness - AZ82.61-P-0002-01E

Model 210 up to 30.6.99

Route lead in vehicle along existing wires as shown in figure.
Provide gray/yellow (gr/ge) lead for reverse lamp signal with contact spring.
Commercially available wire

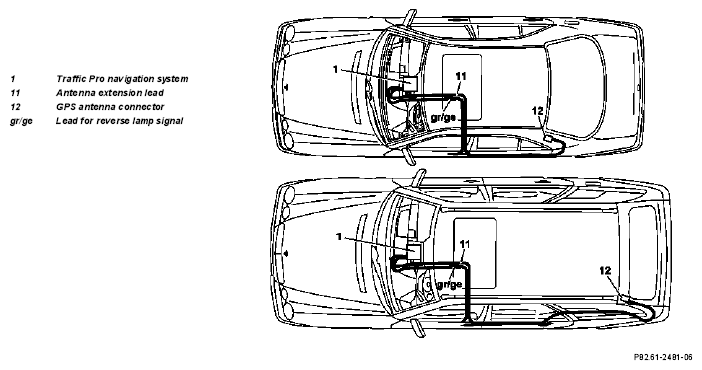

Fig 1: Identifying Traffic Pro Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Insert contact spring of lead for reverse lamp signal (2) into radio connector (A) chamber 2.

Fig 2: Identifying Radio Connector
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route antenna extension lead (11) and gray/yellow (gr/ge) lead for reverse lamp signal from radio shaft to left wiring duct as shown in figure.
Expose gray/yellow (gr/ge) lead for reverse lamp signal in wiring duct and check.
Solder gray/yellow (gr/ge) lead coming from radio to lead of same color in wiring duct with solder connector (a).
Route antenna extension lead (11) to rear in left wiring duct.

Fig 3: Identifying Antenna Extension Lead
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
1. Model 210 sedan
  - Route lead (11) to left C-pillar as shown in figure.
  - Fasten connector(12)in area of roof with adhesive felt (arrows).
  - Fasten lead (11) to C-pillar with omega clip (27).

    Fig 4: Locating Connector
    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Model 210 T model
  - Route antenna extension lead (11) in left load compartment to left D-pillar as shown in figure.

    Fig 5: Identifying Antenna Extension Lead
    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  - Route lead (11) to left D-pillar as shown in figure.
  - Route connector (12) in area of roof edge and fasten.
  - Fasten lead (11) in area of taillamp with omega clip (27)

    Fig 6: Identifying Connector
    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Connect antenna extension lead (11) to navigation system as shown in figure.

Fig 7: Connecting Antenna Extension Lead To Navigation System
