Retrofitting Linguatronic voice control system - AN82.70-P-0004CC
MODEL 210.0## 1# up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B) with CODE (317) GSM portable cellular telephone (D2B) except CODE (347) TELE AID emergency call system (D2B)
MODEL 210.0## 1# as of 1.7.00 with CODE (852) CTEL preinstallation assembly at dome with CODE (853) MB standard cellular telephone with CODE (854) MB portable cellular telephone except CODE (855) TELE AID
| Notes on fiber optic | Models 129, 168, 170, 202, 208, 210, 215, 220. | AH82.70-P-0001-02A | |
| Removal | |||
| 1 | Disconnect battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove left front and rear door sill moldings | ||
| 3 | Open left front and rear wiring ducts | ||
| 4 | Remove cover from center console | ||
| AR68.20-P-2350F | |||
| 5 | Remove knee guard below instrument panel on left | ||
| 6 | Remove floor covering in driver footwell on left | ||
| 7 | Remove paneling in trunk on left | ||
| 8 | Remove rear seat cushion | ||
| AR91.12-P-1700F | |||
| 9 | Remove rear backrest | ||
| 10 | Remove steering wheel | ||
| AR46.10-P-0100B | |||
| 11 | Remove instrument cluster | ||
| AR54.30-P-6015EA | |||
| 12 | Remove jacket tube covering | ||
| 13 | Remove roof control unit | ||
| Install | |||
| 14 | Retrofit Linguatronic voice control system wiring harness | AN82.70-P-0004-01CC | |
| 15 | Retrofit fiber optic wiring harness | AN82.70-P-0002-01CC | |
| 16 | Field installation of Linguatronic voice-controlled system | AN82.70-P-0004-02CC | |
| 17 | Retrofit Linguatronic voice control system control module | AN82.70-P-0004-04CC | |

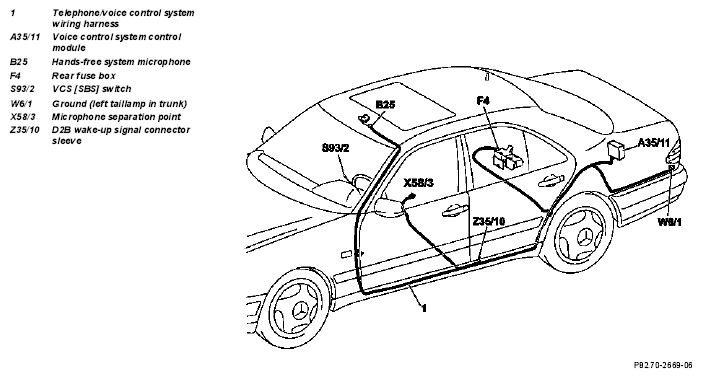

| 18 | Fit parts to vehicle 13-1 | ||
| 19 | Read out actual/nominal configuration with STAR DIAGNOSIS and reconfigure D2B components and enable instrument cluster | ||
| 20 | Carry out function check |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| Group 82 (see EPC) | Fiber optic cable module (order with length specification 540 mm ) | as required |
| A210 820 18 14 | Control module mount (if required) | 1 |
| A210 440 58 05 | Linguatronic voice control system wiring harness | 1 |
| A203 820 33 26 | Linguatronic voice control system control module (language: German) | 1 |
| A210 545 01 24 | Cruise control/voice control system switch (order if vehicle equipment deviates in group 82) | 1 |
| KG54 (see EPC) | VCS lever | 1 |
| Design group 46 (see EPC) | Jacket tube covering (order according to vehicle equipment if required) | 1 |
