Retrofit TV tuner - AN82.60-P-0001E
MODEL 210.0 as of 1.7.99 with CODE (352a) COMAND operating and display system except CODE (862) TV preinstallation
| Removal | |||
| Notes on TV antenna in rear window | AH82.62-P-0001-01A | ||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground lead from battery | ||
| AR54.10-P-0003A | |||
| 3 | Remove COMAND operating, display and control module | ||
| 4 | Remove center console | ||
| AR68.20-P-2000F | |||
| 5 | Remove driver's seat | ||
| AR91.10-P-1000F | |||
| 6 | Remove rear seat | ||
| AR91.12-P-1700F | |||
| 7 | Open left wiring ducts | ||
| 8 | Remove paneling from left and right C-pillar | ||
| Model 210.0 up to end no. 111290 | AR68.30-P-4490F | ||
| 9 | Lower rear headliner | ||
| 10 | Remove left antenna amplifier module | ||
| 11 | Remove side paneling in trunk on left | ||
| Install | |||

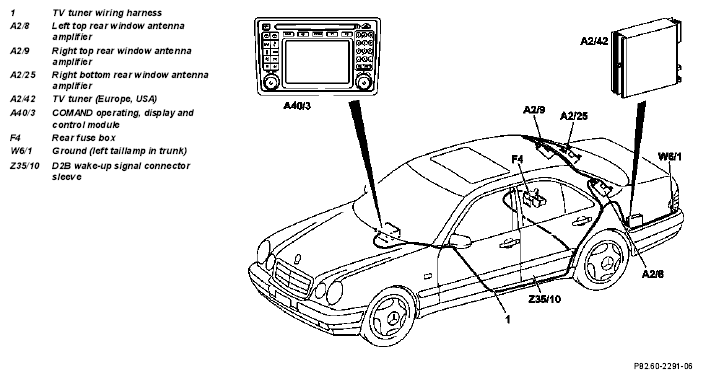

| 12 | Retrofit TV tuner in trunk | AN82.60-P-0001-01E | |
| 13 | Retrofit TV tuner wiring harness | AN82.60-P-0001-03E | |
| 14 | Fit remaining parts to vehicle |
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| KG82 (see EPC) | TV receiver | 1 |
| KG82 (see EPC) | Bracket | 1 |
| KG82 (see EPC) | M5 nut | 2 |
| KG82 (see EPC) | TV tuner wiring harness | 1 |
| KG82 (see EPC) | Left top antenna amplifier | 1 |
| KG82 (see EPC) | Right top antenna amplifier | 1 |
| KG82 (see EPC) | Right bottom antenna amplifier | 1 |
| KG69 (see EPC) | Trunk paneling (order according to vehicle equipment) | 1 |
