Installing TV tuner in trunk - AN82.60-P-0001-01E

Model 210.0 as of 1.7.99

1. Slide TV tuner (A2/42) into mount (2) and fasten with nut (3).
2. Screw mount (2) onto trunk side wall with nuts (4) and commercially available screw (5).
3. Expose connectors for TV tuners (A2/42) tied back and connect.

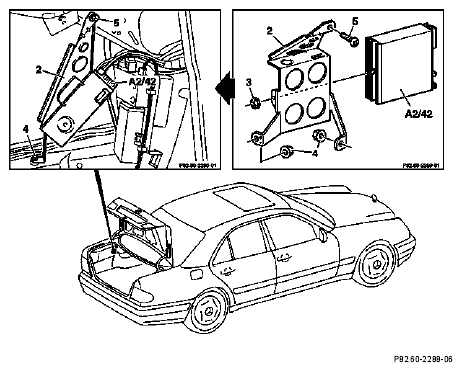

   Fig 1: Identifying TV Tuner In Trunk Components

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
