Retrofitting TV tuner wiring harness - AN82.60-P-0001-03E

Model 210.0

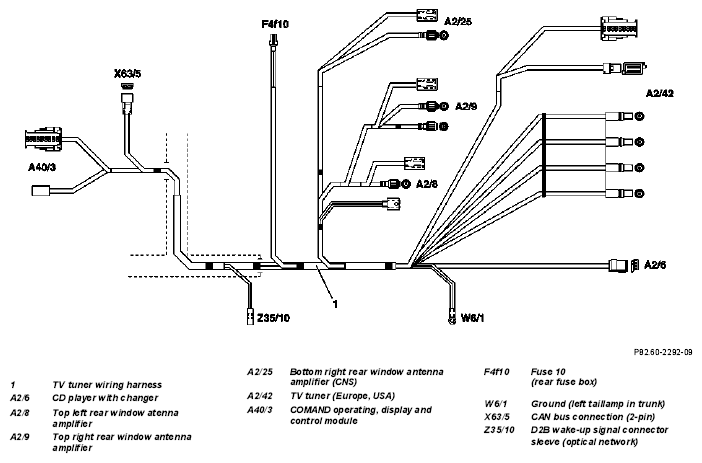

Fig 1: TV Tuner Wiring Harness Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Route wiring harness (1) along existing lines in vehicle as shown in figure and fasten with cable strap.

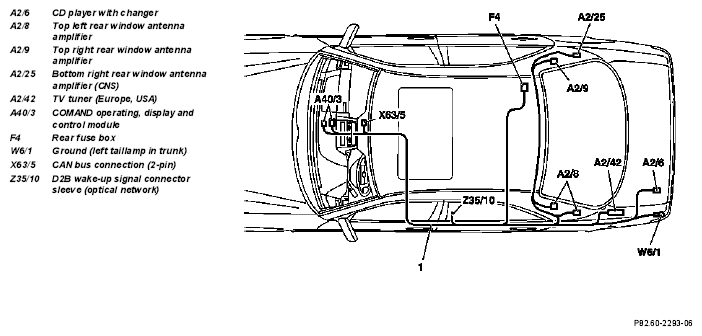

   Fig 2: Identifying TV Tuner Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Route wiring harness (1) from trunk along present leads as shown in figure.

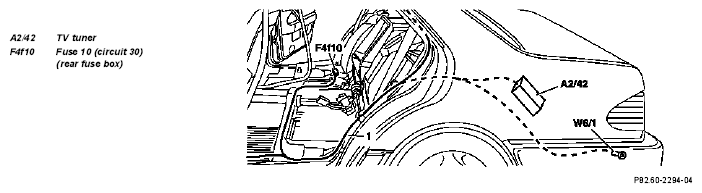

   Fig 3: Identifying TV tuner

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Connect brown lead to ground (left taillamp in trunk) (W6/1).
   Fig 4: Identifying Brown Lead To Ground

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Route tie-out to rear fuse box (F4).
5. Connect red/brown (rt/br) lead, circuit 30 to fuse 10.
   Fig 5: Identifying Rear Fuse Box

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

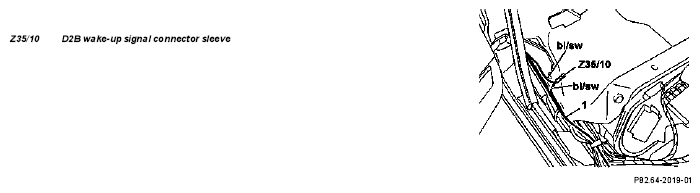

6. Solder blue/black (bl/sw) lead from wiring harness in wiring duct on left B-pillar to blue/black (bl/sw) lead from fiber optic cable wiring harness (1) with solder connector.
   Fig 6: Identifying Blue/Black Lead

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Route wiring harness tie-out (1) to COMAND operating, display and control module (A40/3) in wiring duct below seat as shown in figure.
   Fig 7: Identifying Control Module

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
8. Route all wiring harness tie-outs (1) to connector for COMAND operating, display and control module (A40/3) in center console.
   Fig 8: Identifying Control Module

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Only on vehicles with CD player with changer (code 819)

9. 1. Tie back old standard connector for CD player with changer (A) in radio shaft (replaced by new connector (N) from wiring harness (1)).
      Fig 9: Identifying CD Player With Changer Connector

      Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Only on vehicles with CD player with changer (code 819)

   2. Unscrew screws (24) and remove CD player with changer (A2/6) together with mount (20).
      Fig 10: Identifying CD Player With Changer

      Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Only on vehicles with CD player with changer (code 819).

   3. Remove standard connector from CD player with changer (A2/6) and tie back, connect new connector (23) of wiring harness (1).

   Only on vehicles with CD player with changer (code 819)

   4. Reinstall CD player together with mount

   On vehicles without CD player with changer (code 819)

   5. Tie back connector (23) in trunk to CD player with changer (1) for wiring harness (not required in this case).
      Fig 11: Identifying CD Player With Changer

      Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
10. Open 18-pin standard connector in COMAND operating, display and control module (A40/3) on center console and pull out connector carrier.
11. Insert long black (sw) lead from wiring harness (1) into chamber 17 and black/white (sw/ws) lead into chamber 18.
    Fig 12: Identifying Control Module

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

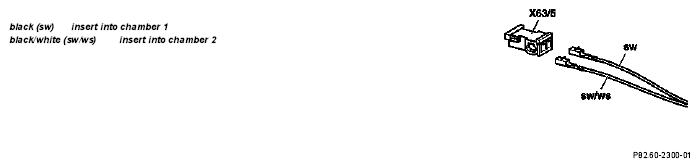

    If chambers 17 and 18 already contain a black (sw) lead or a black/white (sw/ws) lead remove them from the connector carrier and insert leads into enclosed 2-pin connector housing of CAN bus connection (2-pin) (X63/5).

    Fig 13: Identifying Black/White Lead

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
12. Insert yellow (ge) lead from wiring harness (1) into chamber 2, brown (br) lead into chamber 3, short black (sw) lead into chamber 11 and transparent GND lead into chamber 12 on COMAND operating, display and control module (A40/3).
    Fig 14: Identifying Display And Control Module

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
13. If the 2-pin connector housing already contains the black or the black/white lead connect connector housing to wiring harness (1) as CAN bus connection (2-pin) (X63/5).

    If this is not the case tie back CAN bus connection (2-pin) (X63/5) from wiring harness (1) (no longer required).

14. Assemble connector for COMAND operating, display and control module (A40/3) and connect.
    Fig 15: Identifying CAN Bus Connection

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
15. Route antenna tie-outs from wiring harness (1) to left C-pillar and continue to right C-pillar through headliner.

    Do not route leads in area of head airbag.

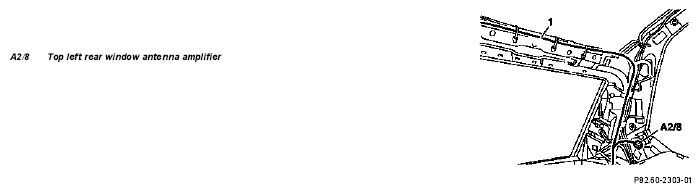

    Fig 16: Identifying Top Left Rear Window Antenna Amplifier

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
16. Remove standard top left rear window antenna amplifier (A2/8) installed and unscrew connection leads and remove.
    Fig 17: Identifying Top Left Rear Window Antenna Amplifier

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
17. Connect new red top left rear window antenna amplifier (A2/8) to standard wiring harness and TV tuner wiring harness (1).

    Black 1-pin connector from standard wiring harness must be connected to white 1-pin connector housing from wiring harness (1) (arrow).

18. Insert wiring harness (1) into omega clips (30) of standard wiring harness.
    Fig 18: Identifying Top Left Rear Window Antenna Amplifier

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
19. Route standard wiring harness tie-out (1) to right C-pillar as shown in figure and fasten with cable strap.
20. Connect top right rear window antenna amplifier (A2/9) and bottom right rear window antenna amplifier (A2/25) to wiring harness (1) and install on installation bolt below gas generator for right head airbag unit.
21. Connect present antenna leads for rear window (tied back on gas generator) to antenna modules.
    Fig 19: Identifying Top Right Rear Window Antenna Amplifier

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
