Retrofitting ultrasonic backup assist - AZ54.65-P-0001FA
MODEL 210.2 as of 1.7.99 with CODE (809) Model year 1999
| Removing | |||
| 1 | Disconnect ground cable from battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove rear bumper | ||
| AR88.20-P-2200EB | |||
| 3 | Take impact member out of bumper | ||
| 4 | Remove trim on D-pillar | ||
| AR68.30-P-4495F | |||
| Installing | |||

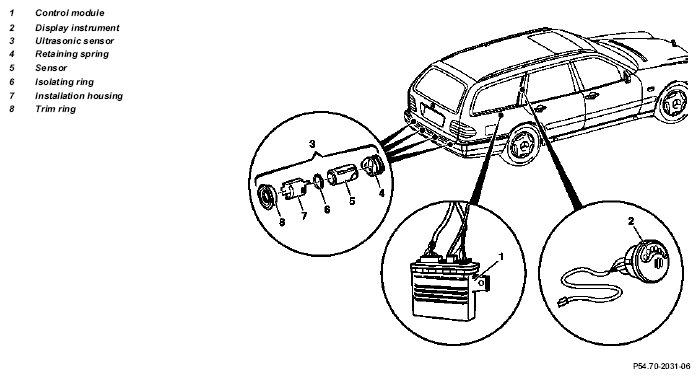

| 5 | Paint sensors and trim rings | AZ54.65-P-0001-01FF | |
| 6 | Install and connect sensors | AZ54.65-P-0001-03FA | |
| 7 | Install control module | AZ54.65-P-0001-04FA | |
| 8 | Install display instrument | AZ54.65-P-0001-05FA | |
| 9 | Route and connect wiring harness | AZ54.65-P-0001-06FA | |
| 10 | Finish work on the vehicle | ||
| 11 | Test ultrasonic backup assist | AZ54.65-P-0001-07A | |
| 12 | Issue manufacturer's safety/operating instructions when handing over the vehicle to the customer |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 3401 | Universal basic kit | 1 |
| B6 782 3803 | Vehicle installation kit W/S 210, model year 99 | 1 |
