Retrofitting ultrasonic backup assist - AZ54.65-P-0001B

MODEL 210.2 up to 30.6.99 except CODE (550) Trailer coupling except CODE (809) Model year 1999

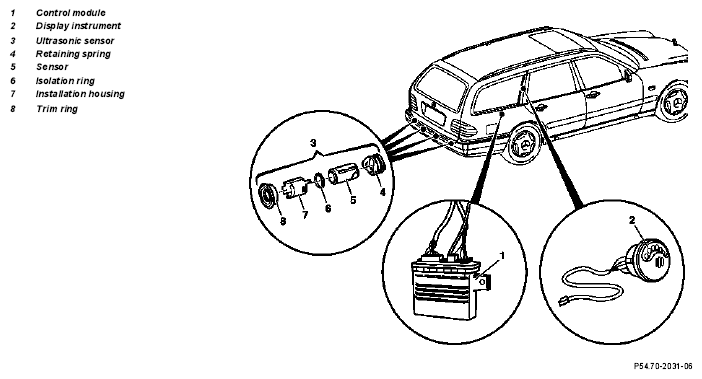

Fig 1: Identifying Retrofitting Ultrasonic Backup Assist - Model 210.2 Up To 30.6.99

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Disconnect ground cable from battery
			AR54.10-P-0003A
2	Remove rear bumper
			AR88.20-P-2200EB
3	Remove impact member from bumper
4	Remove side trim in rear	Right side trim
			AR68.30-P-4780B
5	Remove trim on C-pillar	Right C-pillar
			AR68.30-P-4490FA
	Installing
6	Paint sensors and trim rings	Use 2 trim rings with part no. 0 263 009 067 and 2 with part no. 0 263 009 044	AZ54.65-P-0001-01A
7	Make holes in bumper		AZ54.65-P-0001-02B
8	Install and connect sensors		AZ54.65-P-0001-03A
9	Insert impact member in bumper
10	Install rear bumper	Route connection cable of sensor wiring harness through the selected or prepared duct into the rear area of the loading space. Seal duct with a rubber grommet.
			AR88.20-P-2200F
11	Install control module		AZ54.65-P-0001-04B
12	Install display instrument		AZ54.65-P-0001-05C
13	Route and connect wiring harness		AZ54.65-P-0001-06A
14	Install side trim in rear
			AR68.30-P-4780B
15	Install trim on C-pillar
			AR68.30-P-4490FA
16	Connect battery ground cable
			AR54.10-P-0003A
17	Check ultrasonic backup assist		AZ54.65-P-0001-07A
18	Issue manufacturer's safety/operating instructions when handing over the vehicle to the customer
